SDO HMI 2014-04-22 03:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 106.27 | 452.32 | 107.87 | 454.84 | -13.24 | 225.74 | 60.67 | 257.53 | 0.8699 | 292.3 | 194.7 | |
|
previous
or next observation for the same group /

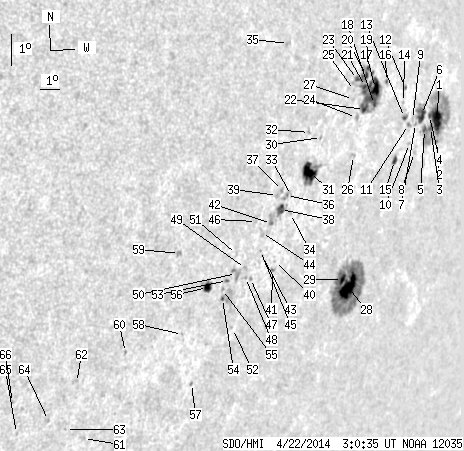

back to the solar disc SDO HMI 2014-04-22 03:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.92 | 89.15 | 17.15 | 102.37 | -10.75 | 229.97 | 64.90 | 260.48 | 0.9039 | 478.1 | 123.5 | |
| 0.71 | -1.00 | 0.82 | -1.00 | -11.40 | 230.24 | 65.18 | 259.75 | 0.9059 | 191.9 | 999999 | |
| 2.31 | -1.00 | 2.62 | -1.00 | -11.02 | 229.64 | 64.57 | 260.18 | 0.9015 | 509.5 | 999999 | |
| 1.51 | -1.00 | 1.70 | -1.00 | -10.67 | 229.43 | 64.36 | 260.57 | 0.8999 | 569.8 | 999999 | |
| 1.95 | -1.00 | 2.19 | -1.00 | -11.11 | 229.25 | 64.18 | 260.08 | 0.8985 | 519.6 | 999999 | |
| 8.52 | 15.18 | 9.41 | 16.75 | -10.68 | 228.87 | 63.80 | 260.56 | 0.8957 | 630.6 | 452.1 | |
| 0.00 | 1.69 | 0.00 | 1.85 | -10.98 | 228.56 | 63.50 | 260.23 | 0.8933 | 487.0 | 497.5 | |
| 0.00 | 1.33 | 0.00 | 1.47 | -11.85 | 228.85 | 63.78 | 259.26 | 0.8955 | 372.0 | 327.1 | |
| 0.00 | 1.78 | 0.00 | 1.92 | -10.88 | 228.32 | 63.25 | 260.35 | 0.8914 | 591.0 | 426.0 | |
| 0.00 | 1.33 | 0.00 | 1.45 | -11.61 | 228.40 | 63.33 | 259.53 | 0.8920 | 328.0 | 305.4 | |
| 0.53 | 2.31 | 0.57 | 2.49 | -11.05 | 228.11 | 63.04 | 260.15 | 0.8898 | 571.5 | 513.5 | |
| 0.53 | 1.60 | 0.56 | 1.69 | -9.96 | 227.51 | 62.45 | 261.38 | 0.8851 | 509.7 | 446.0 | |
| 1.51 | 3.02 | 1.61 | 3.22 | -10.86 | 227.76 | 62.70 | 260.37 | 0.8871 | 696.4 | 605.9 | |
| 0.00 | 1.07 | 0.00 | 1.13 | -10.42 | 227.54 | 62.47 | 260.87 | 0.8853 | 630.0 | 555.2 | |
| 2.49 | 3.91 | 2.64 | 4.14 | -12.19 | 227.61 | 62.55 | 258.86 | 0.8859 | -119.7 | -6.1 | |
| 0.53 | 1.78 | 0.54 | 1.80 | -9.87 | 226.24 | 61.17 | 261.49 | 0.8747 | -332.7 | -263.4 | |
| 8.26 | 75.56 | 8.23 | 74.37 | -10.13 | 225.63 | 60.56 | 261.19 | 0.8695 | 531.8 | 428.0 | |
| 0.27 | -17.00 | 0.27 | -17.00 | -10.62 | 225.72 | 60.65 | 260.64 | 0.8703 | 307.7 | 999999 | |
| 1.24 | -17.00 | 1.22 | -17.00 | -9.57 | 225.02 | 59.95 | 261.85 | 0.8643 | 454.0 | 999999 | |
| 1.78 | -17.00 | 1.73 | -17.00 | -9.79 | 224.96 | 59.89 | 261.60 | 0.8638 | 680.9 | 999999 | |
| 2.31 | -17.00 | 2.26 | -17.00 | -10.12 | 225.00 | 59.93 | 261.21 | 0.8641 | 702.6 | 999999 | |
| 2.66 | -17.00 | 2.62 | -17.00 | -10.81 | 225.16 | 60.09 | 260.41 | 0.8655 | -144.7 | 999999 | |
| 1.86 | -17.00 | 1.79 | -17.00 | -9.95 | 224.46 | 59.39 | 261.41 | 0.8594 | 694.4 | 999999 | |
| 0.00 | 2.04 | 0.00 | 1.98 | -11.09 | 224.76 | 59.69 | 260.09 | 0.8621 | -51.0 | -230.6 | |
| 0.00 | 0.80 | 0.00 | 0.77 | -10.29 | 224.38 | 59.31 | 261.01 | 0.8587 | 316.0 | 282.8 | |
| 0.00 | 1.69 | 0.00 | 1.65 | -12.23 | 224.98 | 59.91 | 258.76 | 0.8642 | 569.0 | 532.6 | |
| 0.00 | 1.15 | 0.00 | 1.11 | -10.56 | 224.40 | 59.34 | 260.69 | 0.8589 | 256.0 | 197.2 | |
| 20.60 | 127.15 | 21.14 | 130.38 | -16.21 | 226.45 | 61.39 | 254.26 | 0.8778 | 617.0 | 175.9 | |
| 3.46 | -28.00 | 3.50 | -28.00 | -16.00 | 225.95 | 60.88 | 254.47 | 0.8736 | 936.6 | 999999 | |
| 0.00 | 1.33 | 0.00 | 1.23 | -11.83 | 222.91 | 57.85 | 259.17 | 0.8458 | -223.0 | -140.6 | |
| 16.69 | 30.46 | 15.29 | 27.93 | -12.93 | 222.60 | 57.53 | 257.85 | 0.8432 | -342.9 | 66.3 | |
| 0.00 | 1.42 | 0.00 | 1.29 | -11.73 | 222.19 | 57.12 | 259.26 | 0.8390 | 540.0 | 435.9 | |
| 0.00 | 0.71 | 0.00 | 0.64 | -13.69 | 221.84 | 56.77 | 256.90 | 0.8366 | 558.0 | 469.2 | |
| 0.00 | 1.07 | 0.00 | 0.96 | -14.24 | 221.99 | 56.92 | 256.26 | 0.8383 | 364.0 | 319.8 | |
| 0.00 | 2.13 | 0.00 | 1.84 | -9.15 | 220.32 | 55.25 | 262.35 | 0.8206 | -47.0 | -114.0 | |
| 0.00 | 4.26 | 0.00 | 3.80 | -13.71 | 221.57 | 56.50 | 256.86 | 0.8340 | 735.0 | 617.5 | |
| 0.00 | 1.60 | 0.00 | 1.42 | -13.58 | 221.29 | 56.22 | 257.01 | 0.8313 | 679.0 | 615.4 | |
| 4.62 | 9.32 | 4.11 | 8.30 | -14.16 | 221.39 | 56.32 | 256.32 | 0.8326 | 639.1 | 439.2 | |
| 0.00 | 2.04 | 0.00 | 1.80 | -13.75 | 221.07 | 56.00 | 256.79 | 0.8294 | 361.0 | 328.0 | |
| 0.00 | 0.62 | 0.00 | 0.56 | -15.75 | 221.69 | 56.62 | 254.44 | 0.8365 | 347.0 | 279.3 | |
| 0.00 | 1.69 | 0.00 | 1.52 | -16.00 | 221.68 | 56.62 | 254.14 | 0.8366 | 408.0 | 314.3 | |
| 0.53 | 5.95 | 0.47 | 5.24 | -14.61 | 221.06 | 55.99 | 255.74 | 0.8298 | 410.8 | 355.3 | |
| 0.00 | 1.07 | 0.00 | 0.94 | -15.61 | 220.95 | 55.89 | 254.53 | 0.8295 | 621.0 | 580.9 | |
| 0.00 | 3.37 | 0.00 | 2.95 | -14.92 | 220.62 | 55.55 | 255.33 | 0.8259 | -144.0 | -80.4 | |
| 0.00 | 0.71 | 0.00 | 0.62 | -15.47 | 220.78 | 55.72 | 254.69 | 0.8278 | 504.0 | 483.9 | |
| 0.00 | 1.24 | 0.00 | 1.07 | -14.61 | 220.23 | 55.16 | 255.68 | 0.8218 | -622.0 | -499.9 | |
| 0.00 | 1.42 | 0.00 | 1.24 | -16.35 | 220.59 | 55.53 | 253.60 | 0.8267 | 632.0 | 544.6 | |
| 0.00 | 1.07 | 0.00 | 0.93 | -16.34 | 220.31 | 55.24 | 253.59 | 0.8240 | 701.0 | 635.3 | |
| 0.00 | 2.04 | 0.00 | 1.77 | -16.07 | 220.20 | 55.13 | 253.90 | 0.8227 | 495.0 | 452.3 | |
| 0.00 | 7.37 | 0.00 | 6.33 | -16.25 | 219.78 | 54.71 | 253.64 | 0.8189 | 66.0 | 42.1 | |
| 0.00 | 1.42 | 0.00 | 1.21 | -15.68 | 219.55 | 54.48 | 254.31 | 0.8161 | -483.0 | -432.9 | |
| 0.00 | 0.62 | 0.00 | 0.54 | -17.93 | 220.30 | 55.23 | 251.66 | 0.8255 | 534.0 | 508.6 | |
| 0.62 | 1.69 | 0.53 | 1.44 | -16.50 | 219.39 | 54.32 | 253.29 | 0.8154 | -430.9 | -359.7 | |
| 0.80 | 9.77 | 0.68 | 8.36 | -17.06 | 219.35 | 54.29 | 252.60 | 0.8156 | -278.8 | 157.3 | |
| 0.00 | 1.42 | 0.00 | 1.21 | -16.79 | 219.24 | 54.17 | 252.92 | 0.8142 | -308.0 | -299.8 | |
| 5.06 | 9.59 | 4.22 | 7.98 | -16.78 | 218.43 | 53.36 | 252.83 | 0.8063 | -563.0 | -464.5 | |
| 0.00 | 1.24 | 0.00 | 1.06 | -19.76 | 218.91 | 53.84 | 249.24 | 0.8148 | -280.0 | -219.7 | |
| 0.00 | 0.89 | 0.00 | 0.73 | -18.30 | 217.75 | 52.68 | 250.85 | 0.8015 | -516.0 | -466.3 | |
| 0.00 | 3.11 | 0.00 | 2.48 | -15.85 | 216.62 | 51.56 | 253.76 | 0.7870 | -467.0 | -470.9 | |
| 0.00 | 1.60 | 0.00 | 1.25 | -19.03 | 215.14 | 50.07 | 249.46 | 0.7764 | -611.0 | -514.5 | |
| 0.00 | 1.86 | 0.00 | 1.45 | -21.81 | 214.26 | 49.19 | 245.73 | 0.7731 | -425.0 | -279.9 | |
| 0.00 | 0.98 | 0.00 | 0.74 | -20.10 | 213.17 | 48.10 | 247.66 | 0.7581 | -532.0 | -568.2 | |
| 0.00 | 0.71 | 0.00 | 0.54 | -21.59 | 213.27 | 48.20 | 245.76 | 0.7625 | -569.0 | -488.6 | |
| 0.00 | 1.24 | 0.00 | 0.93 | -21.36 | 212.35 | 47.28 | 245.81 | 0.7524 | -516.0 | -463.9 | |
| 0.00 | 1.24 | 0.00 | 0.91 | -21.85 | 211.04 | 45.97 | 244.79 | 0.7399 | -306.0 | -342.6 | |
| 0.00 | 1.51 | 0.00 | 1.09 | -20.90 | 210.47 | 45.40 | 245.89 | 0.7311 | -619.0 | -569.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
