SDO HMI 2014-04-22 03:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.08 | 410.77 | 37.17 | 221.06 | 17.83 | 166.78 | 1.71 | 355.79 | 0.3922 | -700.0 | -340.5 | |
|
previous
or next observation for the same group /

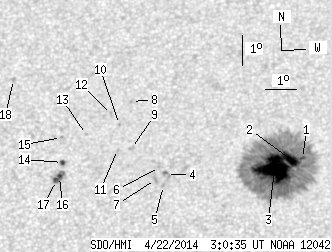

back to the solar disc SDO HMI 2014-04-22 03:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.42 | 378.89 | 0.77 | 203.84 | 18.07 | 167.99 | 2.92 | 352.96 | 0.3969 | -727.4 | -424.1 | |
| 13.05 | -1.00 | 7.04 | -1.00 | 18.03 | 167.61 | 2.54 | 353.86 | 0.3957 | -1055.7 | 999999 | |
| 50.17 | -1.00 | 26.97 | -1.00 | 17.74 | 167.09 | 2.03 | 355.02 | 0.3902 | -1333.1 | 999999 | |
| 0.00 | 3.46 | 0.00 | 1.86 | 17.54 | 163.68 | -1.39 | 3.44 | 0.3863 | 540.0 | 762.7 | |
| 0.00 | 1.78 | 0.00 | 0.95 | 17.18 | 163.59 | -1.48 | 3.74 | 0.3806 | 707.0 | 537.0 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 17.77 | 163.46 | -1.61 | 3.95 | 0.3902 | 700.0 | 624.7 | |
| 0.00 | 2.84 | 0.00 | 1.52 | 17.38 | 163.33 | -1.74 | 4.33 | 0.3840 | 903.0 | 664.3 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 19.95 | 162.54 | -2.53 | 5.61 | 0.4262 | 760.0 | 561.2 | |
| 0.00 | 2.66 | 0.00 | 1.44 | 18.40 | 162.56 | -2.51 | 5.96 | 0.4015 | 607.0 | 515.2 | |
| 0.00 | 0.89 | 0.00 | 0.48 | 19.19 | 162.17 | -2.90 | 6.64 | 0.4148 | 803.0 | 633.8 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 18.37 | 162.12 | -2.95 | 7.01 | 0.4018 | 688.0 | 649.6 | |
| 0.00 | 1.86 | 0.00 | 1.02 | 19.53 | 161.90 | -3.16 | 7.13 | 0.4206 | 705.0 | 575.4 | |
| 0.00 | 0.89 | 0.00 | 0.48 | 18.87 | 161.12 | -3.95 | 9.14 | 0.4120 | 577.0 | 462.4 | |
| 1.42 | 2.58 | 0.77 | 1.39 | 17.96 | 160.38 | -4.69 | 11.27 | 0.3997 | 822.9 | 631.2 | |
| 0.00 | 1.15 | 0.00 | 0.63 | 18.78 | 160.32 | -4.74 | 10.98 | 0.4128 | -712.0 | -572.2 | |
| 1.51 | 8.44 | 0.81 | 4.54 | 17.50 | 160.29 | -4.77 | 11.71 | 0.3928 | 1116.7 | 845.2 | |
| 1.51 | -16.00 | 0.81 | -16.00 | 17.37 | 160.20 | -4.87 | 12.00 | 0.3910 | 1106.5 | 999999 | |
| 0.00 | 2.31 | 0.00 | 1.28 | 20.72 | 158.71 | -6.35 | 13.41 | 0.4481 | 817.0 | 628.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
