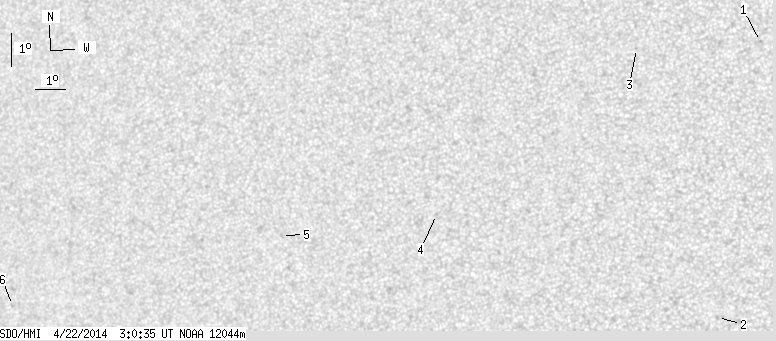

SDO HMI 2014-04-22 03:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.76 | 0.00 | 3.71 | -8.96 | 141.72 | -23.35 | 101.19 | 0.3984 | 710.2 | 529.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-22 03:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.45 | -3.93 | 152.13 | -12.94 | 85.62 | 0.2250 | 840.0 | 707.9 | |
| 0.00 | 1.78 | 0.00 | 0.92 | -12.23 | 150.48 | -14.59 | 117.47 | 0.2787 | 776.0 | 545.5 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -4.05 | 148.25 | -16.82 | 87.32 | 0.2902 | 721.0 | 491.1 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -8.85 | 141.57 | -23.49 | 100.59 | 0.4025 | 745.0 | 586.0 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -9.28 | 136.26 | -28.81 | 100.09 | 0.4850 | 601.0 | 483.3 | |
| 0.00 | 1.33 | 0.00 | 0.85 | -10.90 | 126.11 | -38.96 | 101.12 | 0.6315 | 578.0 | 437.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
