SDO HMI 2014-04-22 04:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.31 | 403.18 | 40.51 | 217.01 | 17.78 | 166.77 | 2.25 | 354.49 | 0.3918 | -789.3 | -335.7 | |
|
previous
or next observation for the same group /

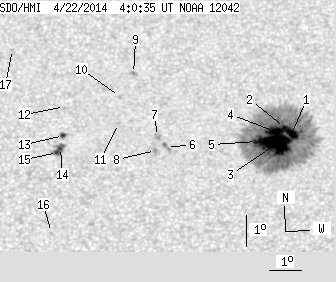

back to the solar disc SDO HMI 2014-04-22 04:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.03 | 373.43 | 5.41 | 200.98 | 17.98 | 167.63 | 3.11 | 352.48 | 0.3958 | -1096.7 | -410.1 | |
| 2.31 | -1.00 | 1.25 | -1.00 | 18.17 | 167.41 | 2.89 | 353.07 | 0.3985 | -1023.1 | 999999 | |
| 42.36 | -1.00 | 22.76 | -1.00 | 17.62 | 167.11 | 2.59 | 353.60 | 0.3890 | -1432.0 | 999999 | |
| 11.37 | -1.00 | 6.13 | -1.00 | 18.04 | 167.09 | 2.57 | 353.79 | 0.3958 | -1144.9 | 999999 | |
| 2.58 | -1.00 | 1.38 | -1.00 | 17.71 | 166.51 | 1.99 | 355.10 | 0.3896 | -1125.9 | 999999 | |
| 0.00 | 4.09 | 0.00 | 2.19 | 17.52 | 163.67 | -0.85 | 2.12 | 0.3853 | 786.0 | 787.4 | |
| 0.00 | 3.82 | 0.00 | 2.05 | 17.88 | 163.38 | -1.14 | 2.78 | 0.3914 | 740.0 | 645.3 | |
| 0.00 | 2.22 | 0.00 | 1.19 | 17.42 | 163.32 | -1.20 | 2.99 | 0.3840 | 965.0 | 823.6 | |
| 0.00 | 2.93 | 0.00 | 1.60 | 19.96 | 162.60 | -1.92 | 4.26 | 0.4254 | 765.0 | 609.6 | |
| 0.00 | 1.42 | 0.00 | 0.77 | 19.20 | 162.16 | -2.36 | 5.41 | 0.4139 | 886.0 | 623.0 | |
| 0.00 | 0.89 | 0.00 | 0.48 | 18.31 | 162.14 | -2.38 | 5.68 | 0.3998 | 767.0 | 704.4 | |
| 0.00 | 0.71 | 0.00 | 0.39 | 18.88 | 160.41 | -4.11 | 9.50 | 0.4125 | -568.0 | -606.9 | |
| 1.60 | 2.84 | 0.86 | 1.53 | 17.93 | 160.40 | -4.12 | 9.94 | 0.3975 | 766.9 | 549.6 | |
| 2.66 | 9.59 | 1.43 | 5.16 | 17.54 | 160.31 | -4.21 | 10.33 | 0.3915 | 1041.4 | 708.5 | |
| 2.40 | -14.00 | 1.29 | -14.00 | 17.37 | 160.22 | -4.30 | 10.63 | 0.3892 | 1139.6 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.33 | 14.79 | 160.09 | -4.43 | 12.44 | 0.3484 | 681.0 | 483.7 | |
| 0.00 | 0.62 | 0.00 | 0.34 | 20.79 | 158.68 | -5.84 | 12.33 | 0.4473 | 656.0 | 539.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
