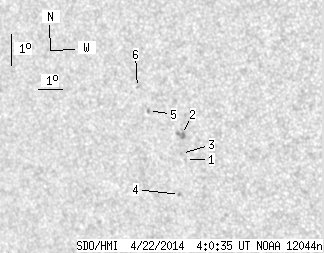

SDO HMI 2014-04-22 04:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.36 | 0.00 | 7.40 | -19.40 | 125.71 | -38.81 | 114.26 | 0.6508 | 202.8 | 381.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-22 04:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.75 | -20.06 | 126.00 | -38.52 | 115.35 | 0.6497 | 480.0 | 436.6 | |
| 0.00 | 5.33 | 0.00 | 3.45 | -19.27 | 126.06 | -38.46 | 114.21 | 0.6460 | 719.0 | 706.7 | |
| 0.00 | 1.24 | 0.00 | 0.81 | -19.86 | 125.89 | -38.63 | 115.02 | 0.6502 | 569.0 | 494.4 | |
| 0.00 | 1.24 | 0.00 | 0.82 | -21.13 | 125.42 | -39.10 | 116.68 | 0.6606 | 723.0 | 611.2 | |
| 0.00 | 1.60 | 0.00 | 1.05 | -18.46 | 124.93 | -39.59 | 112.58 | 0.6570 | -621.0 | -520.3 | |
| 0.00 | 0.80 | 0.00 | 0.52 | -17.73 | 124.67 | -39.84 | 111.41 | 0.6578 | -653.0 | -574.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
