SDO HMI 2014-04-22 04:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.92 | 153.19 | 22.62 | 116.94 | -23.61 | 116.69 | -47.83 | 116.95 | 0.7636 | 397.4 | 316.0 | |
|
previous
or next observation for the same group /

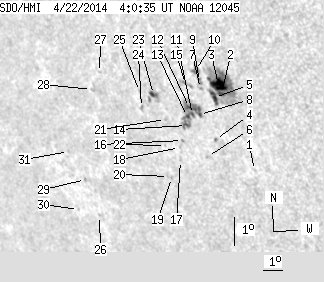

back to the solar disc SDO HMI 2014-04-22 04:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.20 | -25.97 | 118.44 | -46.08 | 120.50 | 0.7539 | 486.0 | 396.7 | |
| 1.95 | 75.31 | 1.46 | 56.01 | -23.45 | 118.07 | -46.45 | 117.15 | 0.7495 | 787.1 | 529.1 | |
| 13.59 | -2.00 | 10.11 | -2.00 | -23.16 | 118.06 | -46.46 | 116.77 | 0.7487 | 1049.2 | 999999 | |
| 0.00 | 1.42 | 0.00 | 1.09 | -24.87 | 117.09 | -47.43 | 118.66 | 0.7637 | 609.0 | 518.8 | |
| 5.06 | -2.00 | 3.80 | -2.00 | -23.55 | 117.69 | -46.83 | 117.16 | 0.7537 | 595.6 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.76 | -25.38 | 116.43 | -48.09 | 119.09 | 0.7717 | 289.0 | 396.4 | |
| 0.00 | 0.98 | 0.00 | 0.74 | -23.23 | 117.16 | -47.36 | 116.59 | 0.7582 | 532.0 | 492.2 | |
| 1.15 | 35.26 | 0.88 | 27.20 | -24.04 | 116.72 | -47.80 | 117.49 | 0.7649 | 693.8 | 342.9 | |
| 0.00 | 3.46 | 0.00 | 2.61 | -23.01 | 117.22 | -47.30 | 116.32 | 0.7570 | 593.0 | 470.3 | |
| 0.00 | 5.68 | 0.00 | 4.29 | -22.65 | 117.19 | -47.33 | 115.85 | 0.7563 | 562.0 | 422.1 | |
| 0.98 | -8.00 | 0.75 | -8.00 | -24.02 | 116.38 | -48.13 | 117.36 | 0.7682 | 597.4 | 999999 | |
| 1.33 | -8.00 | 1.03 | -8.00 | -23.79 | 116.35 | -48.17 | 117.06 | 0.7679 | 339.9 | 999999 | |
| 1.42 | -8.00 | 1.10 | -8.00 | -24.06 | 116.11 | -48.41 | 117.34 | 0.7710 | 560.5 | 999999 | |
| 1.86 | -8.00 | 1.45 | -8.00 | -24.34 | 115.92 | -48.60 | 117.63 | 0.7737 | 576.3 | 999999 | |
| 0.00 | 5.59 | 0.00 | 4.28 | -23.03 | 116.52 | -48.00 | 116.14 | 0.7641 | 311.0 | 223.4 | |
| 0.00 | 1.24 | 0.00 | 0.98 | -24.80 | 115.47 | -49.04 | 118.08 | 0.7793 | 562.0 | 485.9 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -25.43 | 115.03 | -49.49 | 118.72 | 0.7852 | 399.0 | 392.0 | |
| 0.00 | 0.44 | 0.00 | 0.35 | -25.01 | 115.21 | -49.31 | 118.26 | 0.7824 | 569.0 | 464.0 | |
| 0.00 | 1.51 | 0.00 | 1.22 | -25.93 | 114.27 | -50.25 | 119.12 | 0.7937 | 537.0 | 380.1 | |
| 0.00 | 0.98 | 0.00 | 0.79 | -25.89 | 114.13 | -50.38 | 119.03 | 0.7949 | 221.0 | 247.7 | |
| 0.00 | 1.15 | 0.00 | 0.91 | -24.09 | 114.99 | -49.53 | 117.05 | 0.7821 | 377.0 | 247.5 | |
| 0.00 | 0.36 | 0.00 | 0.28 | -24.90 | 114.54 | -49.97 | 117.94 | 0.7884 | 200.0 | 176.2 | |
| 2.58 | 9.50 | 2.04 | 7.52 | -23.27 | 114.80 | -49.72 | 115.98 | 0.7818 | -754.4 | -522.4 | |
| 0.00 | 2.04 | 0.00 | 1.64 | -23.64 | 113.99 | -50.53 | 116.22 | 0.7906 | -612.0 | -530.9 | |
| 0.00 | 0.71 | 0.00 | 0.57 | -23.13 | 114.15 | -50.36 | 115.64 | 0.7878 | -578.0 | -522.5 | |
| 0.00 | 0.89 | 0.00 | 0.80 | -26.87 | 109.64 | -54.88 | 119.05 | 0.8367 | -511.0 | -427.7 | |
| 0.00 | 0.98 | 0.00 | 0.81 | -22.41 | 112.44 | -52.08 | 114.34 | 0.8027 | -518.0 | -456.5 | |
| 0.00 | 1.24 | 0.00 | 1.04 | -22.90 | 111.73 | -52.79 | 114.79 | 0.8103 | -395.0 | -385.5 | |
| 0.00 | 1.24 | 0.00 | 1.11 | -25.69 | 109.66 | -54.86 | 117.66 | 0.8342 | -569.0 | -489.4 | |
| 0.00 | 0.71 | 0.00 | 0.65 | -26.60 | 108.59 | -55.93 | 118.50 | 0.8449 | -306.0 | -276.0 | |
| 0.00 | 0.98 | 0.00 | 0.88 | -24.75 | 109.30 | -55.21 | 116.48 | 0.8354 | -370.0 | -364.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
