SDO HMI 2014-04-22 05:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.65 | 451.62 | 109.02 | 469.52 | -13.17 | 225.69 | 61.72 | 257.63 | 0.8785 | 263.2 | 187.6 | |
|
previous
or next observation for the same group /

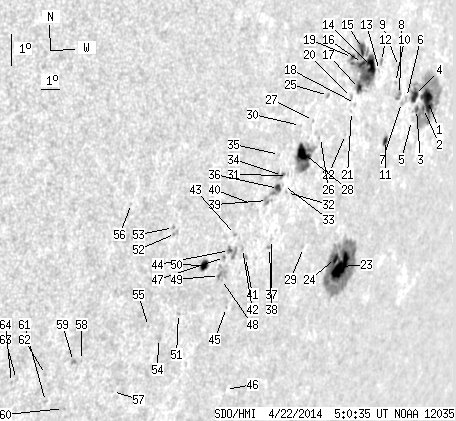

back to the solar disc SDO HMI 2014-04-22 05:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.50 | 104.98 | 20.96 | 125.21 | -10.78 | 230.01 | 66.04 | 260.43 | 0.9121 | 492.7 | 129.7 | |
| 1.95 | -1.00 | 2.32 | -1.00 | -11.04 | 229.82 | 65.85 | 260.15 | 0.9107 | 610.8 | 999999 | |
| 2.04 | -1.00 | 2.39 | -1.00 | -11.11 | 229.32 | 65.35 | 260.07 | 0.9072 | 555.1 | 999999 | |
| 7.28 | -1.00 | 8.40 | -1.00 | -10.70 | 229.00 | 65.03 | 260.52 | 0.9049 | 685.3 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.82 | -11.46 | 229.10 | 65.13 | 259.68 | 0.9056 | 184.0 | 198.5 | |
| 0.00 | 1.33 | 0.00 | 1.51 | -10.81 | 228.46 | 64.49 | 260.41 | 0.9009 | 617.0 | 541.9 | |
| 0.00 | 1.60 | 0.00 | 1.79 | -10.98 | 228.17 | 64.21 | 260.22 | 0.8987 | 471.0 | 496.6 | |
| 0.00 | 4.62 | 0.00 | 5.13 | -10.75 | 227.94 | 63.97 | 260.47 | 0.8970 | 664.0 | 612.5 | |
| 0.00 | 1.33 | 0.00 | 1.46 | -9.93 | 227.57 | 63.60 | 261.40 | 0.8942 | 582.0 | 555.7 | |
| 0.00 | 0.98 | 0.00 | 1.07 | -10.42 | 227.54 | 63.57 | 260.85 | 0.8939 | 561.0 | 513.3 | |
| 2.84 | 4.88 | 3.12 | 5.35 | -12.20 | 227.55 | 63.58 | 258.86 | 0.8940 | -200.3 | -22.4 | |
| 0.00 | 2.49 | 0.00 | 2.62 | -9.86 | 226.39 | 62.42 | 261.49 | 0.8849 | -300.0 | -265.1 | |
| 0.00 | 0.62 | 0.00 | 0.65 | -10.14 | 226.35 | 62.38 | 261.17 | 0.8846 | -393.0 | -263.3 | |
| 9.77 | 77.80 | 10.11 | 79.34 | -10.06 | 225.79 | 61.82 | 261.27 | 0.8801 | 593.6 | 488.5 | |
| 5.51 | -14.00 | 5.57 | -14.00 | -9.57 | 225.05 | 61.08 | 261.83 | 0.8740 | 585.9 | 999999 | |
| 3.55 | -14.00 | 3.61 | -14.00 | -10.02 | 225.19 | 61.22 | 261.32 | 0.8751 | 729.5 | 999999 | |
| 3.29 | -14.00 | 3.34 | -14.00 | -10.78 | 225.26 | 61.29 | 260.45 | 0.8756 | -75.3 | 999999 | |
| 0.00 | 1.07 | 0.00 | 1.08 | -11.24 | 225.16 | 61.19 | 259.92 | 0.8749 | -340.0 | -276.7 | |
| 1.69 | -14.00 | 1.68 | -14.00 | -9.88 | 224.52 | 60.55 | 261.48 | 0.8694 | 695.5 | 999999 | |
| 0.00 | 1.42 | 0.00 | 1.43 | -11.08 | 224.85 | 60.88 | 260.10 | 0.8723 | -186.0 | -173.1 | |
| 0.00 | 0.80 | 0.00 | 0.81 | -11.50 | 225.00 | 61.03 | 259.62 | 0.8736 | -499.0 | -416.3 | |
| 0.00 | 0.53 | 0.00 | 0.54 | -12.21 | 224.89 | 60.92 | 258.80 | 0.8727 | 455.0 | 502.7 | |
| 20.60 | 120.07 | 21.87 | 127.45 | -16.18 | 226.42 | 62.45 | 254.34 | 0.8863 | 652.1 | 166.7 | |
| 3.11 | -23.00 | 3.25 | -23.00 | -15.97 | 225.97 | 62.00 | 254.56 | 0.8826 | 1015.7 | 999999 | |
| 0.00 | 1.69 | 0.00 | 1.63 | -11.13 | 223.43 | 59.46 | 260.03 | 0.8601 | 346.0 | 298.4 | |
| 0.00 | 0.53 | 0.00 | 0.51 | -12.42 | 223.40 | 59.43 | 258.52 | 0.8601 | -87.0 | -98.8 | |
| 0.00 | 0.89 | 0.00 | 0.84 | -11.94 | 222.80 | 58.83 | 259.07 | 0.8547 | -235.0 | -157.2 | |
| 13.06 | 40.68 | 12.30 | 38.44 | -12.97 | 222.58 | 58.61 | 257.85 | 0.8530 | -404.0 | 165.3 | |
| 0.00 | 0.62 | 0.00 | 0.61 | -15.79 | 223.79 | 59.82 | 254.63 | 0.8647 | 329.0 | 264.3 | |
| 0.00 | 0.27 | 0.00 | 0.25 | -12.14 | 222.10 | 58.13 | 258.80 | 0.8485 | -27.0 | -117.3 | |
| 0.00 | 1.15 | 0.00 | 1.07 | -13.70 | 221.91 | 57.94 | 256.96 | 0.8473 | 381.0 | 476.5 | |
| 0.00 | 0.71 | 0.00 | 0.66 | -14.21 | 222.05 | 58.08 | 256.36 | 0.8488 | 459.0 | 396.1 | |
| 0.00 | 0.89 | 0.00 | 0.82 | -14.01 | 221.80 | 57.83 | 256.58 | 0.8464 | 408.0 | 347.9 | |
| 1.07 | 6.22 | 0.98 | 5.69 | -13.72 | 221.62 | 57.65 | 256.92 | 0.8447 | 653.4 | 530.2 | |
| 0.00 | 0.53 | 0.00 | 0.48 | -13.10 | 221.22 | 57.25 | 257.63 | 0.8407 | 448.0 | 479.3 | |
| 3.20 | 7.37 | 2.93 | 6.76 | -14.12 | 221.55 | 57.58 | 256.43 | 0.8442 | 625.0 | 528.7 | |
| 0.00 | 1.24 | 0.00 | 1.15 | -15.68 | 221.79 | 57.82 | 254.60 | 0.8473 | 337.0 | 250.6 | |
| 0.00 | 1.69 | 0.00 | 1.56 | -15.93 | 221.79 | 57.82 | 254.31 | 0.8474 | 408.0 | 335.8 | |
| 0.00 | 5.86 | 0.00 | 5.32 | -14.53 | 221.07 | 57.10 | 255.92 | 0.8401 | 368.0 | 315.6 | |
| 0.00 | 1.07 | 0.00 | 0.95 | -14.71 | 220.28 | 56.31 | 255.65 | 0.8329 | -658.0 | -520.1 | |
| 0.00 | 1.60 | 0.00 | 1.44 | -16.33 | 220.57 | 56.60 | 253.73 | 0.8367 | 628.0 | 552.9 | |
| 0.00 | 1.60 | 0.00 | 1.43 | -16.07 | 220.28 | 56.31 | 254.01 | 0.8339 | 554.0 | 491.2 | |
| 0.00 | 1.24 | 0.00 | 1.09 | -15.68 | 219.72 | 55.75 | 254.43 | 0.8283 | -483.0 | -444.1 | |
| 0.98 | 9.15 | 0.86 | 8.06 | -16.18 | 219.59 | 55.62 | 253.81 | 0.8275 | -463.3 | 77.4 | |
| 0.00 | 0.80 | 0.00 | 0.72 | -17.92 | 220.21 | 56.24 | 251.79 | 0.8349 | 511.0 | 446.6 | |
| 0.00 | 0.80 | 0.00 | 0.74 | -20.42 | 221.49 | 57.52 | 249.00 | 0.8489 | 389.0 | 340.2 | |
| 0.00 | 1.51 | 0.00 | 1.32 | -16.41 | 219.41 | 55.44 | 253.51 | 0.8260 | -518.0 | -412.4 | |
| 0.00 | 0.36 | 0.00 | 0.31 | -17.09 | 219.54 | 55.57 | 252.71 | 0.8279 | 108.0 | 138.8 | |
| 0.53 | 9.33 | 0.47 | 8.17 | -16.98 | 219.38 | 55.41 | 252.83 | 0.8263 | -267.5 | 30.6 | |
| 5.68 | 8.08 | 4.86 | 6.91 | -16.73 | 218.44 | 54.48 | 253.02 | 0.8171 | -581.0 | -370.4 | |
| 0.00 | 1.51 | 0.00 | 1.27 | -18.28 | 217.71 | 53.74 | 251.02 | 0.8119 | -457.0 | -419.1 | |
| 0.00 | 2.75 | 0.00 | 2.25 | -15.86 | 216.56 | 52.59 | 253.86 | 0.7976 | -587.0 | -442.8 | |
| 0.00 | 1.33 | 0.00 | 1.08 | -15.69 | 216.39 | 52.42 | 254.06 | 0.7958 | -506.0 | -417.4 | |
| 0.00 | 3.46 | 0.00 | 2.89 | -19.11 | 217.02 | 53.05 | 249.89 | 0.8063 | -204.0 | -180.3 | |
| 0.00 | 0.98 | 0.00 | 0.80 | -18.78 | 216.34 | 52.37 | 250.19 | 0.7992 | -472.0 | -394.4 | |
| 0.00 | 0.62 | 0.00 | 0.48 | -15.10 | 214.08 | 50.11 | 254.51 | 0.7710 | -537.0 | -454.4 | |
| 0.00 | 0.71 | 0.00 | 0.58 | -20.89 | 215.43 | 51.46 | 247.39 | 0.7938 | -409.0 | -387.5 | |
| 0.00 | 0.98 | 0.00 | 0.76 | -20.04 | 213.47 | 49.50 | 248.05 | 0.7725 | -582.0 | -496.8 | |
| 0.00 | 2.40 | 0.00 | 1.85 | -20.09 | 213.10 | 49.13 | 247.90 | 0.7688 | -701.0 | -585.3 | |
| 0.00 | 1.24 | 0.00 | 0.97 | -21.57 | 213.25 | 49.28 | 246.04 | 0.7736 | -542.0 | -481.1 | |
| 0.00 | 1.42 | 0.00 | 1.09 | -21.41 | 212.29 | 48.32 | 246.01 | 0.7634 | -291.0 | -295.6 | |
| 0.00 | 0.71 | 0.00 | 0.54 | -20.58 | 211.93 | 47.96 | 246.99 | 0.7577 | -657.0 | -567.9 | |
| 0.00 | 1.42 | 0.00 | 1.05 | -20.81 | 210.65 | 46.68 | 246.35 | 0.7447 | -294.0 | -408.8 | |
| 0.00 | 0.98 | 0.00 | 0.72 | -20.92 | 210.45 | 46.48 | 246.15 | 0.7429 | -645.0 | -559.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
