SDO HMI 2014-04-22 05:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.15 | 0.00 | 3.14 | -17.32 | 197.63 | 33.66 | 246.15 | 0.5797 | -565.2 | -478.0 | |
|
previous
or next observation for the same group /

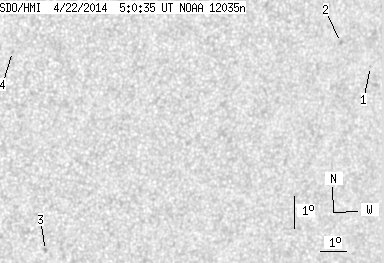

back to the solar disc SDO HMI 2014-04-22 05:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.41 | -15.74 | 204.31 | 40.34 | 251.70 | 0.6585 | -569.0 | -438.1 | |
| 0.00 | 1.78 | 0.00 | 1.14 | -15.08 | 202.93 | 38.96 | 252.33 | 0.6395 | -487.0 | -414.5 | |
| 0.00 | 1.51 | 0.00 | 0.89 | -22.02 | 193.12 | 29.16 | 236.18 | 0.5457 | -739.0 | -617.5 | |
| 0.00 | 1.24 | 0.00 | 0.70 | -15.90 | 190.82 | 26.85 | 245.51 | 0.4792 | -466.0 | -427.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
