SDO HMI 2014-04-22 05:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.40 | 425.50 | 36.82 | 229.11 | 17.81 | 166.74 | 2.78 | 353.22 | 0.3932 | -697.4 | -332.3 | |
|
previous
or next observation for the same group /

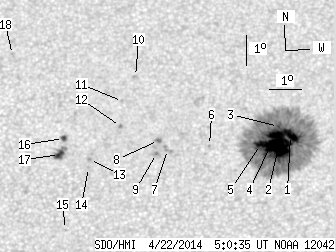

back to the solar disc SDO HMI 2014-04-22 05:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.08 | 391.75 | 6.52 | 210.92 | 18.02 | 167.55 | 3.58 | 351.36 | 0.3974 | -1085.6 | -414.8 | |
| 35.79 | -1.00 | 19.25 | -1.00 | 17.66 | 167.16 | 3.20 | 352.15 | 0.3908 | -1476.2 | 999999 | |
| 0.98 | -1.00 | 0.53 | -1.00 | 18.31 | 167.18 | 3.21 | 352.36 | 0.4012 | -747.3 | 999999 | |
| 8.53 | -1.00 | 4.60 | -1.00 | 18.05 | 167.08 | 3.11 | 352.51 | 0.3969 | -1180.0 | 999999 | |
| 4.62 | -1.00 | 2.48 | -1.00 | 17.72 | 166.60 | 2.63 | 353.56 | 0.3907 | -1171.4 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 17.69 | 164.98 | 1.01 | 357.50 | 0.3881 | -641.0 | -462.1 | |
| 0.00 | 4.35 | 0.00 | 2.33 | 17.56 | 163.65 | -0.32 | 0.79 | 0.3856 | 869.0 | 711.0 | |
| 0.00 | 2.75 | 0.00 | 1.48 | 17.85 | 163.37 | -0.60 | 1.47 | 0.3905 | 862.0 | 692.5 | |
| 0.00 | 2.93 | 0.00 | 1.57 | 17.43 | 163.31 | -0.66 | 1.66 | 0.3837 | 964.0 | 843.7 | |
| 0.00 | 2.04 | 0.00 | 1.12 | 19.97 | 162.62 | -1.34 | 2.99 | 0.4248 | 749.0 | 628.7 | |
| 0.00 | 1.33 | 0.00 | 0.72 | 19.14 | 162.22 | -1.75 | 4.04 | 0.4120 | 535.0 | 507.3 | |
| 0.00 | 1.51 | 0.00 | 0.82 | 18.31 | 162.16 | -1.81 | 4.33 | 0.3989 | 895.0 | 753.5 | |
| 0.00 | 1.51 | 0.00 | 0.81 | 17.24 | 161.19 | -2.78 | 6.97 | 0.3832 | 877.0 | 736.2 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 16.98 | 161.16 | -2.81 | 7.13 | 0.3791 | 857.0 | 692.0 | |
| 0.00 | 0.36 | 0.00 | 0.19 | 14.98 | 160.47 | -3.50 | 9.78 | 0.3485 | 613.0 | 639.5 | |
| 1.78 | 3.02 | 0.96 | 1.63 | 17.93 | 160.36 | -3.61 | 8.75 | 0.3961 | 864.0 | 611.6 | |
| 4.62 | 10.30 | 2.48 | 5.54 | 17.41 | 160.24 | -3.73 | 9.24 | 0.3881 | 1103.2 | 751.0 | |
| 0.00 | 1.78 | 0.00 | 0.98 | 20.73 | 158.65 | -5.32 | 11.30 | 0.4445 | 729.0 | 599.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
