SDO HMI 2014-04-22 06:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 88.46 | 277.73 | 47.89 | 150.57 | -11.22 | 186.63 | 23.21 | 253.18 | 0.4059 | 496.8 | 285.7 | |
|
previous
or next observation for the same group /

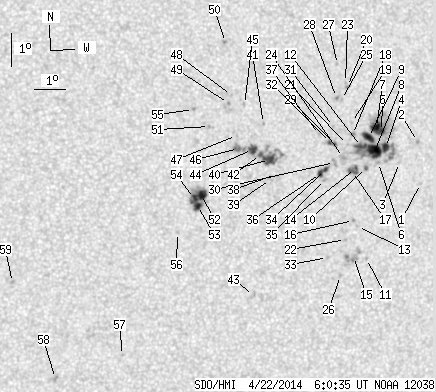

back to the solar disc SDO HMI 2014-04-22 06:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 0.79 | -11.71 | 190.14 | 26.71 | 254.06 | 0.4597 | 489.0 | 402.4 | |
| 0.00 | 1.42 | 0.00 | 0.79 | -10.45 | 189.91 | 26.49 | 256.70 | 0.4526 | 830.0 | 702.9 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -11.10 | 189.35 | 25.93 | 255.04 | 0.4460 | 643.0 | 528.1 | |
| 4.71 | 115.73 | 2.59 | 63.49 | -10.67 | 188.84 | 25.42 | 255.79 | 0.4369 | 914.0 | 535.8 | |
| 3.64 | -4.00 | 2.00 | -4.00 | -10.19 | 188.66 | 25.24 | 256.81 | 0.4328 | 983.5 | 999999 | |
| 0.00 | 1.60 | 0.00 | 0.88 | -11.13 | 188.64 | 25.22 | 254.66 | 0.4353 | 702.0 | 593.2 | |
| 8.53 | -4.00 | 4.67 | -4.00 | -10.07 | 188.48 | 25.06 | 257.00 | 0.4298 | 1236.6 | 999999 | |
| 13.94 | -4.00 | 7.65 | -4.00 | -10.80 | 188.48 | 25.05 | 255.33 | 0.4318 | 1177.6 | 999999 | |
| 7.37 | -4.00 | 4.03 | -4.00 | -10.38 | 188.24 | 24.81 | 256.19 | 0.4269 | 1165.2 | 999999 | |
| 0.89 | 2.40 | 0.49 | 1.31 | -11.29 | 188.25 | 24.83 | 254.10 | 0.4299 | 875.1 | 596.4 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -14.06 | 188.54 | 25.11 | 248.14 | 0.4454 | 674.0 | 517.1 | |
| 4.71 | -4.00 | 2.57 | -4.00 | -10.66 | 188.02 | 24.60 | 255.44 | 0.4245 | 1160.0 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -13.09 | 188.12 | 24.70 | 249.98 | 0.4350 | 726.0 | 567.9 | |
| 1.42 | 8.79 | 0.78 | 4.80 | -11.34 | 187.88 | 24.46 | 253.82 | 0.4245 | 947.1 | 622.5 | |
| 0.00 | 10.66 | 0.00 | 5.87 | -14.01 | 188.08 | 24.66 | 247.94 | 0.4387 | 626.0 | 736.0 | |
| 0.00 | 1.51 | 0.00 | 0.83 | -12.92 | 187.97 | 24.54 | 250.28 | 0.4319 | 833.0 | 652.1 | |
| 3.29 | -14.00 | 1.80 | -14.00 | -11.43 | 187.79 | 24.37 | 253.55 | 0.4234 | 873.2 | 999999 | |
| 0.00 | 1.95 | 0.00 | 1.06 | -10.31 | 187.69 | 24.27 | 256.12 | 0.4183 | 1079.0 | 904.1 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -9.95 | 187.63 | 24.21 | 256.95 | 0.4163 | 679.0 | 486.1 | |
| 0.00 | 1.78 | 0.00 | 0.96 | -8.87 | 187.42 | 23.99 | 259.47 | 0.4104 | 798.0 | 676.8 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -10.62 | 187.55 | 24.13 | 255.33 | 0.4170 | 748.0 | 609.0 | |
| 0.00 | 1.33 | 0.00 | 0.73 | -13.50 | 187.76 | 24.33 | 248.83 | 0.4314 | 728.0 | 594.1 | |
| 0.00 | 0.62 | 0.00 | 0.34 | -8.75 | 187.34 | 23.92 | 259.74 | 0.4090 | 807.0 | 662.6 | |
| 0.00 | 3.29 | 0.00 | 1.79 | -11.02 | 187.45 | 24.03 | 254.34 | 0.4168 | 250.0 | 190.9 | |
| 0.00 | 1.33 | 0.00 | 0.72 | -9.27 | 187.24 | 23.82 | 258.45 | 0.4086 | 663.0 | 562.2 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -14.61 | 187.71 | 24.29 | 246.38 | 0.4362 | 796.0 | 523.1 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -8.22 | 187.04 | 23.62 | 260.96 | 0.4032 | 808.0 | 622.9 | |
| 0.00 | 1.33 | 0.00 | 0.72 | -9.21 | 187.07 | 23.65 | 258.52 | 0.4058 | 1030.0 | 924.8 | |
| 0.71 | 4.26 | 0.39 | 2.31 | -10.61 | 187.11 | 23.69 | 255.16 | 0.4103 | 976.6 | 764.8 | |
| 0.00 | 3.38 | 0.00 | 1.83 | -11.18 | 187.16 | 23.74 | 253.81 | 0.4129 | -172.0 | -455.1 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -10.09 | 187.04 | 23.62 | 256.36 | 0.4076 | 738.0 | 555.0 | |
| 1.33 | -29.00 | 0.72 | -29.00 | -10.58 | 186.97 | 23.55 | 255.16 | 0.4081 | 953.7 | 999999 | |
| 0.00 | 1.51 | 0.00 | 0.83 | -14.07 | 187.20 | 23.78 | 247.18 | 0.4262 | 575.0 | 505.2 | |
| 1.95 | 7.64 | 1.06 | 4.14 | -11.40 | 186.88 | 23.45 | 253.13 | 0.4094 | -780.5 | -465.2 | |
| 0.00 | 1.78 | 0.00 | 0.96 | -11.71 | 186.87 | 23.45 | 252.40 | 0.4105 | 309.0 | 400.0 | |
| 2.93 | -34.00 | 1.59 | -34.00 | -11.53 | 186.72 | 23.30 | 252.74 | 0.4075 | -891.0 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -10.35 | 186.59 | 23.17 | 255.53 | 0.4014 | 747.0 | 472.3 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -11.61 | 185.23 | 21.80 | 251.62 | 0.3850 | 80.0 | 85.4 | |
| 0.00 | 1.95 | 0.00 | 1.05 | -11.76 | 185.07 | 21.65 | 251.12 | 0.3834 | -771.0 | -528.2 | |
| 8.35 | 33.75 | 4.47 | 18.04 | -11.16 | 184.99 | 21.57 | 252.60 | 0.3796 | -976.5 | -677.6 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -10.08 | 184.72 | 21.29 | 255.26 | 0.3713 | -692.0 | -588.6 | |
| 1.60 | -40.00 | 0.85 | -40.00 | -11.02 | 184.68 | 21.26 | 252.77 | 0.3743 | -1089.6 | 999999 | |
| 0.00 | 2.40 | 0.00 | 1.29 | -15.31 | 184.84 | 21.42 | 242.35 | 0.3993 | 638.0 | 597.8 | |
| 4.97 | -40.00 | 2.65 | -40.00 | -10.87 | 184.41 | 20.99 | 252.97 | 0.3695 | -1095.0 | 999999 | |
| 0.00 | 1.69 | 0.00 | 0.90 | -9.52 | 184.06 | 20.64 | 256.40 | 0.3591 | -680.0 | -537.2 | |
| 0.00 | 7.37 | 0.00 | 3.92 | -10.86 | 183.95 | 20.53 | 252.71 | 0.3622 | -1136.0 | -954.2 | |
| 0.00 | 0.89 | 0.00 | 0.47 | -10.46 | 183.86 | 20.43 | 253.71 | 0.3593 | -765.0 | -639.1 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -9.26 | 183.62 | 20.20 | 256.90 | 0.3514 | -682.0 | -491.2 | |
| 0.00 | 1.42 | 0.00 | 0.75 | -9.50 | 183.53 | 20.11 | 256.17 | 0.3508 | -877.0 | -720.7 | |
| 0.00 | 1.51 | 0.00 | 0.80 | -7.67 | 183.34 | 19.92 | 261.34 | 0.3430 | -964.0 | -844.1 | |
| 0.00 | 0.89 | 0.00 | 0.47 | -10.22 | 182.96 | 19.54 | 253.80 | 0.3442 | -870.0 | -705.6 | |
| 7.64 | 31.89 | 4.04 | 16.86 | -12.28 | 182.84 | 19.42 | 247.98 | 0.3520 | 1134.5 | 621.9 | |
| 5.86 | -52.00 | 3.10 | -52.00 | -12.62 | 182.74 | 19.32 | 246.98 | 0.3522 | 1007.9 | 999999 | |
| 4.62 | -52.00 | 2.44 | -52.00 | -12.41 | 182.62 | 19.20 | 247.44 | 0.3493 | 1328.1 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -9.72 | 182.41 | 18.99 | 254.88 | 0.3337 | -1012.0 | -845.8 | |
| 0.00 | 1.42 | 0.00 | 0.75 | -13.46 | 182.15 | 18.73 | 244.14 | 0.3485 | 785.0 | 638.7 | |
| 0.00 | 0.53 | 0.00 | 0.28 | -17.27 | 180.68 | 17.25 | 232.67 | 0.3577 | 711.0 | 579.2 | |
| 0.00 | 2.84 | 0.00 | 1.50 | -18.03 | 178.54 | 15.12 | 227.40 | 0.3384 | 897.0 | 696.9 | |
| 0.00 | 1.42 | 0.00 | 0.73 | -15.10 | 176.92 | 13.50 | 231.78 | 0.2882 | 925.0 | 730.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
