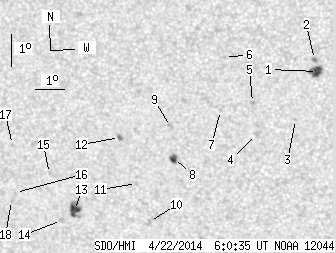

SDO HMI 2014-04-22 06:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.96 | 57.73 | 9.40 | 31.99 | -19.98 | 141.12 | -22.30 | 126.82 | 0.4450 | 306.7 | 277.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-22 06:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.86 | 11.01 | 3.11 | 5.84 | -17.61 | 146.47 | -16.95 | 128.56 | 0.3570 | 1105.6 | 786.7 | |
| 0.00 | 2.13 | 0.00 | 1.13 | -17.23 | 146.40 | -17.02 | 127.60 | 0.3544 | 1084.0 | 887.1 | |
| 0.00 | 0.80 | 0.00 | 0.43 | -19.07 | 145.58 | -17.84 | 130.45 | 0.3821 | 747.0 | 571.0 | |
| 0.00 | 3.46 | 0.00 | 1.87 | -19.50 | 144.21 | -19.21 | 129.40 | 0.4030 | 739.0 | 556.7 | |
| 0.00 | 1.60 | 0.00 | 0.86 | -18.51 | 144.20 | -19.22 | 127.31 | 0.3942 | 905.0 | 780.4 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -17.09 | 143.42 | -20.00 | 123.24 | 0.3925 | 794.0 | 672.1 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -18.72 | 143.09 | -20.33 | 126.34 | 0.4102 | 695.0 | 521.7 | |
| 3.20 | 5.15 | 1.77 | 2.85 | -20.16 | 141.28 | -22.14 | 127.07 | 0.4453 | 1012.3 | 738.3 | |
| 0.00 | 2.93 | 0.00 | 1.61 | -19.16 | 141.32 | -22.10 | 125.18 | 0.4366 | 809.0 | 655.7 | |
| 0.00 | 4.62 | 0.00 | 2.60 | -22.11 | 140.12 | -23.30 | 129.35 | 0.4759 | 624.0 | 444.5 | |
| 0.00 | 2.13 | 0.00 | 1.19 | -20.90 | 139.87 | -23.55 | 126.92 | 0.4688 | 358.0 | 292.6 | |
| 0.71 | 2.84 | 0.40 | 1.59 | -19.44 | 139.51 | -23.91 | 123.84 | 0.4621 | 973.8 | 818.5 | |
| 7.19 | 13.59 | 4.12 | 7.78 | -21.66 | 137.52 | -25.90 | 125.97 | 0.5037 | -995.0 | -774.7 | |
| 0.00 | 2.22 | 0.00 | 1.28 | -21.96 | 136.99 | -26.43 | 126.00 | 0.5123 | -459.0 | -362.5 | |
| 0.00 | 0.62 | 0.00 | 0.36 | -20.47 | 136.85 | -26.58 | 123.29 | 0.5034 | -775.0 | -626.0 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -21.02 | 135.51 | -27.92 | 123.12 | 0.5239 | -438.0 | -403.6 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -19.52 | 135.69 | -27.73 | 120.65 | 0.5118 | 541.0 | 491.5 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -21.26 | 135.31 | -28.11 | 123.38 | 0.5280 | -635.0 | -566.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
