SDO HMI 2014-04-22 06:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.49 | 0.00 | 5.79 | -8.17 | 139.39 | -24.03 | 99.87 | 0.4114 | 719.9 | 577.4 | |
|
previous
or next observation for the same group /

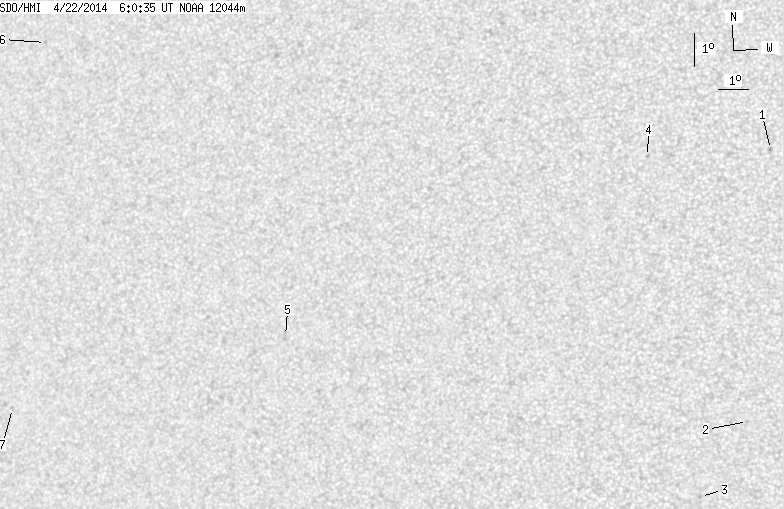

back to the solar disc SDO HMI 2014-04-22 06:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.51 | 0.00 | 0.76 | -3.94 | 152.15 | -11.27 | 85.00 | 0.1967 | 1075.0 | 824.2 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -12.14 | 151.18 | -12.24 | 121.28 | 0.2437 | 817.0 | 641.6 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -14.39 | 149.56 | -13.86 | 125.47 | 0.2863 | 676.0 | 561.2 | |
| 0.00 | 1.07 | 0.00 | 0.55 | -4.07 | 148.33 | -15.09 | 87.03 | 0.2613 | 839.0 | 644.0 | |
| 0.00 | 3.02 | 0.00 | 1.68 | -9.08 | 136.29 | -27.14 | 100.13 | 0.4594 | 287.0 | 514.9 | |
| 0.00 | 0.98 | 0.00 | 0.59 | 0.14 | 128.21 | -35.22 | 82.70 | 0.5836 | 735.0 | 545.5 | |
| 0.00 | 1.78 | 0.00 | 1.11 | -10.83 | 126.19 | -37.23 | 101.30 | 0.6083 | 610.0 | 473.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
