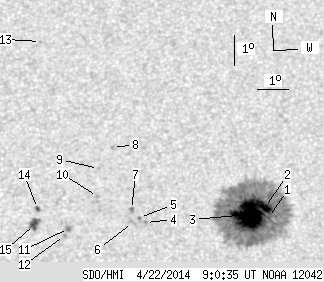

SDO HMI 2014-04-22 09:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.44 | 417.59 | 37.98 | 225.35 | 17.77 | 166.73 | 4.95 | 348.04 | 0.3977 | -753.4 | -313.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-22 09:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.27 | 387.14 | 0.14 | 208.96 | 17.64 | 167.67 | 5.89 | 345.72 | 0.3984 | -948.0 | -394.7 | |
| 8.62 | -1.00 | 4.66 | -1.00 | 17.96 | 167.56 | 5.78 | 346.20 | 0.4030 | -1080.3 | 999999 | |
| 56.04 | -1.00 | 30.23 | -1.00 | 17.73 | 167.04 | 5.26 | 347.26 | 0.3975 | -1401.6 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.71 | 17.46 | 163.77 | 1.99 | 355.04 | 0.3850 | 859.0 | 726.7 | |
| 0.00 | 0.71 | 0.00 | 0.38 | 17.62 | 163.58 | 1.80 | 355.54 | 0.3873 | 925.0 | 800.2 | |
| 0.00 | 5.24 | 0.00 | 2.81 | 17.45 | 163.36 | 1.58 | 356.06 | 0.3844 | 861.0 | 664.2 | |
| 0.00 | 2.40 | 0.00 | 1.29 | 17.88 | 163.33 | 1.55 | 356.21 | 0.3912 | 891.0 | 811.9 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 19.92 | 162.74 | 0.96 | 357.85 | 0.4234 | 760.0 | 662.4 | |
| 0.00 | 1.24 | 0.00 | 0.68 | 19.23 | 162.29 | 0.51 | 358.82 | 0.4122 | 702.0 | 543.9 | |
| 0.00 | 1.42 | 0.00 | 0.77 | 18.31 | 162.26 | 0.48 | 358.86 | 0.3974 | 761.0 | 682.1 | |
| 0.00 | 3.37 | 0.00 | 1.81 | 17.26 | 161.34 | -0.44 | 1.12 | 0.3805 | 1064.0 | 926.3 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 17.03 | 161.21 | -0.57 | 1.45 | 0.3768 | 942.0 | 705.3 | |
| 0.00 | 1.15 | 0.00 | 0.65 | 23.51 | 160.41 | -1.37 | 2.64 | 0.4797 | 731.0 | 548.1 | |
| 1.07 | 2.04 | 0.57 | 1.10 | 17.92 | 160.35 | -1.43 | 3.48 | 0.3917 | 790.8 | 629.5 | |
| 4.44 | 9.50 | 2.38 | 5.09 | 17.39 | 160.26 | -1.52 | 3.79 | 0.3834 | 1108.3 | 819.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
