SDO HMI 2014-04-22 09:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.22 | 51.52 | 7.74 | 28.22 | -19.71 | 140.93 | -20.85 | 128.07 | 0.4250 | 362.1 | 202.3 | |
|
previous
or next observation for the same group /

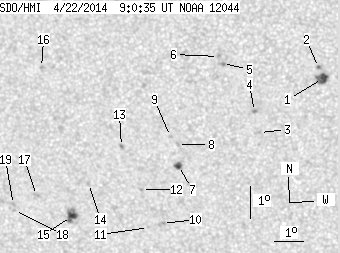

back to the solar disc SDO HMI 2014-04-22 09:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.13 | 9.86 | 3.22 | 5.18 | -17.57 | 146.54 | -15.24 | 131.35 | 0.3352 | 1077.7 | 757.1 | |
| 0.00 | 1.51 | 0.00 | 0.79 | -17.22 | 146.44 | -15.34 | 130.36 | 0.3330 | 975.0 | 857.4 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -19.19 | 144.30 | -17.48 | 131.26 | 0.3791 | 882.0 | 654.1 | |
| 0.00 | 1.87 | 0.00 | 1.00 | -18.53 | 144.20 | -17.58 | 129.71 | 0.3739 | 997.0 | 833.3 | |
| 0.00 | 2.31 | 0.00 | 1.23 | -17.02 | 143.30 | -18.48 | 125.04 | 0.3719 | 870.0 | 704.0 | |
| 0.00 | 1.51 | 0.00 | 0.80 | -16.80 | 143.19 | -18.59 | 124.38 | 0.3715 | 867.0 | 673.9 | |
| 2.49 | 4.00 | 1.36 | 2.18 | -20.13 | 141.44 | -20.34 | 129.20 | 0.4230 | 1034.2 | 813.4 | |
| 0.00 | 1.51 | 0.00 | 0.82 | -19.48 | 141.49 | -20.29 | 127.97 | 0.4165 | 732.0 | 624.8 | |
| 0.00 | 1.51 | 0.00 | 0.82 | -19.22 | 141.29 | -20.49 | 127.20 | 0.4168 | 854.0 | 657.0 | |
| 0.00 | 2.93 | 0.00 | 1.62 | -21.93 | 140.62 | -21.16 | 131.54 | 0.4493 | 876.0 | 631.4 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -22.04 | 140.11 | -21.67 | 131.13 | 0.4562 | 617.0 | 439.5 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -20.84 | 140.06 | -21.72 | 128.87 | 0.4461 | 584.0 | 439.9 | |
| 0.00 | 1.42 | 0.00 | 0.78 | -19.48 | 139.57 | -22.21 | 125.71 | 0.4408 | 917.0 | 732.1 | |
| 0.00 | 2.04 | 0.00 | 1.14 | -20.60 | 138.24 | -23.54 | 126.41 | 0.4664 | -781.0 | -605.3 | |
| 5.60 | 11.46 | 3.16 | 6.48 | -21.61 | 137.47 | -24.31 | 127.43 | 0.4840 | -1001.8 | -774.1 | |
| 0.00 | 1.60 | 0.00 | 0.89 | -16.95 | 137.17 | -24.61 | 118.31 | 0.4544 | 726.0 | 635.5 | |
| 0.00 | 1.78 | 0.00 | 1.01 | -20.90 | 136.35 | -25.43 | 125.10 | 0.4923 | -811.0 | -693.3 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -21.34 | 135.47 | -26.31 | 125.08 | 0.5064 | -644.0 | -544.8 | |
| 0.00 | 1.95 | 0.00 | 1.12 | -21.15 | 135.47 | -26.31 | 124.75 | 0.5050 | -777.0 | -675.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
