SDO HMI 2014-04-22 10:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.68 | 0.00 | 7.94 | -19.89 | 125.79 | -35.44 | 116.52 | 0.6118 | 510.8 | 511.5 | |
|
previous
or next observation for the same group /

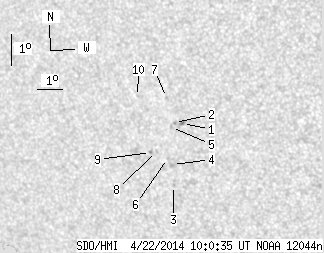

back to the solar disc SDO HMI 2014-04-22 10:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.86 | 0.00 | 1.15 | -19.31 | 126.47 | -34.76 | 115.96 | 0.6007 | 901.0 | 743.5 | |
| 0.00 | 1.15 | 0.00 | 0.72 | -19.26 | 126.17 | -35.06 | 115.74 | 0.6043 | 566.0 | 551.9 | |
| 0.00 | 1.15 | 0.00 | 0.73 | -21.22 | 125.61 | -35.62 | 118.48 | 0.6199 | 624.0 | 572.7 | |
| 0.00 | 3.02 | 0.00 | 1.89 | -20.56 | 125.76 | -35.48 | 117.55 | 0.6152 | 632.0 | 471.6 | |
| 0.00 | 1.24 | 0.00 | 0.77 | -19.41 | 126.02 | -35.22 | 115.90 | 0.6068 | 522.0 | 427.1 | |
| 0.00 | 0.53 | 0.00 | 0.33 | -20.37 | 125.61 | -35.62 | 117.18 | 0.6161 | 651.0 | 587.3 | |
| 0.00 | 1.15 | 0.00 | 0.72 | -18.48 | 126.05 | -35.18 | 114.43 | 0.6025 | 699.0 | 530.0 | |
| 0.00 | 0.98 | 0.00 | 0.62 | -20.13 | 125.24 | -36.00 | 116.63 | 0.6196 | 477.0 | 385.8 | |
| 0.00 | 1.33 | 0.00 | 0.84 | -20.15 | 124.99 | -36.24 | 116.54 | 0.6226 | 668.0 | 517.7 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -18.39 | 124.93 | -36.30 | 113.79 | 0.6162 | -632.0 | -484.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
