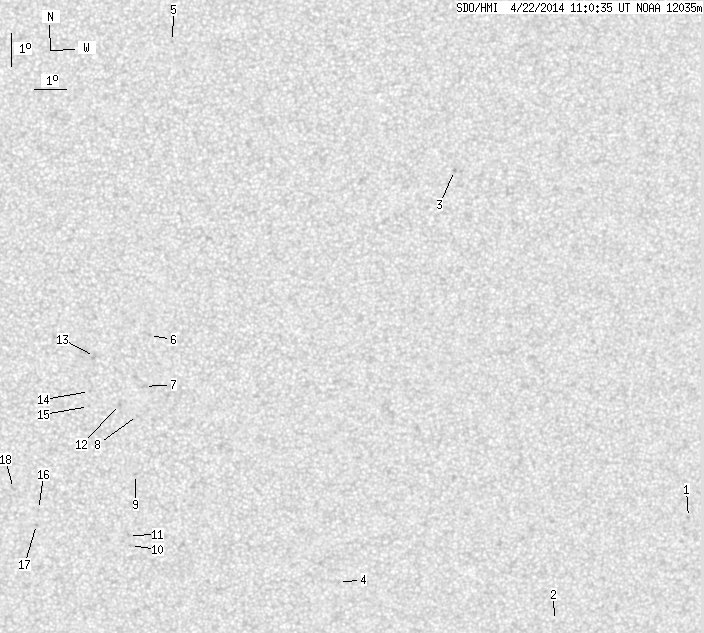

SDO HMI 2014-04-22 11:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 23.79 | 0.00 | 12.34 | -20.29 | 163.27 | 2.59 | 188.25 | 0.2822 | -769.8 | -626.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-22 11:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 0.78 | -22.85 | 179.93 | 19.24 | 224.29 | 0.4367 | -881.0 | -661.5 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -26.25 | 175.75 | 15.07 | 212.54 | 0.4352 | -84.0 | -106.2 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -12.29 | 171.35 | 10.66 | 234.58 | 0.2228 | -970.0 | -819.3 | |
| 0.00 | 1.33 | 0.00 | 0.71 | -25.14 | 168.27 | 7.59 | 199.10 | 0.3668 | -799.0 | -492.8 | |
| 0.00 | 0.80 | 0.00 | 0.40 | -8.46 | 162.57 | 1.89 | 208.28 | 0.0690 | -713.0 | -583.7 | |
| 0.00 | 0.98 | 0.00 | 0.50 | -17.41 | 161.90 | 1.22 | 185.39 | 0.2170 | -815.0 | -675.0 | |
| 0.00 | 2.66 | 0.00 | 1.36 | -18.99 | 161.75 | 1.07 | 184.16 | 0.2436 | -891.0 | -668.9 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -19.89 | 161.53 | 0.85 | 183.10 | 0.2587 | -701.0 | -561.3 | |
| 0.00 | 1.42 | 0.00 | 0.74 | -21.74 | 161.48 | 0.79 | 182.55 | 0.2898 | -962.0 | -660.2 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -23.99 | 161.32 | 0.64 | 181.79 | 0.3271 | -834.0 | -631.5 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -23.67 | 161.25 | 0.57 | 181.63 | 0.3218 | -840.0 | -694.7 | |
| 0.00 | 1.60 | 0.00 | 0.82 | -19.55 | 160.96 | 0.27 | 181.02 | 0.2525 | -877.0 | -688.9 | |
| 0.00 | 3.02 | 0.00 | 1.54 | -18.06 | 160.16 | -0.52 | 177.81 | 0.2273 | -715.0 | -654.6 | |
| 0.00 | 0.71 | 0.00 | 0.36 | -19.14 | 160.00 | -0.69 | 177.35 | 0.2459 | -841.0 | -646.4 | |
| 0.00 | 0.62 | 0.00 | 0.32 | -19.61 | 159.96 | -0.72 | 177.31 | 0.2538 | -757.0 | -541.1 | |
| 0.00 | 0.89 | 0.00 | 0.46 | -22.84 | 158.31 | -2.38 | 172.90 | 0.3103 | -694.0 | -610.2 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -23.31 | 158.23 | -2.45 | 172.88 | 0.3183 | -864.0 | -690.7 | |
| 0.00 | 1.69 | 0.00 | 0.88 | -22.17 | 157.51 | -3.18 | 170.14 | 0.3012 | -619.0 | -593.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
