SDO HMI 2014-04-22 11:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 95.46 | 316.93 | 52.90 | 176.00 | -11.07 | 187.05 | 26.37 | 255.13 | 0.4529 | 386.0 | 250.8 | |
|
previous
or next observation for the same group /

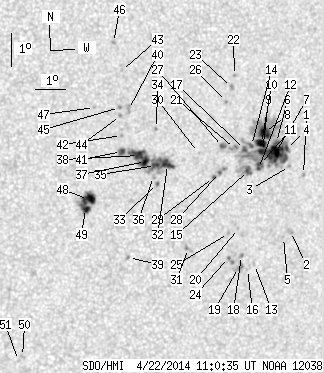

back to the solar disc SDO HMI 2014-04-22 11:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.60 | 0.00 | 0.91 | -11.28 | 190.07 | 29.39 | 255.94 | 0.4981 | 565.0 | 518.8 | |
| 0.00 | 3.02 | 0.00 | 1.72 | -13.03 | 189.82 | 29.14 | 252.39 | 0.4997 | 738.0 | 611.2 | |
| 0.00 | 1.33 | 0.00 | 0.76 | -11.06 | 189.56 | 28.87 | 256.21 | 0.4899 | 623.0 | 490.6 | |
| 1.60 | 151.14 | 0.91 | 84.98 | -10.52 | 189.39 | 28.71 | 257.25 | 0.4862 | 605.7 | 554.8 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -13.22 | 189.60 | 28.91 | 251.92 | 0.4971 | 703.0 | 577.1 | |
| 1.69 | -4.00 | 0.95 | -4.00 | -10.35 | 189.03 | 28.34 | 257.48 | 0.4803 | 706.9 | 999999 | |
| 18.74 | -4.00 | 10.57 | -4.00 | -10.65 | 189.02 | 28.34 | 256.85 | 0.4810 | 1061.7 | 999999 | |
| 9.95 | -4.00 | 5.59 | -4.00 | -10.07 | 188.58 | 27.90 | 257.94 | 0.4730 | 1149.3 | 999999 | |
| 5.06 | -4.00 | 2.85 | -4.00 | -10.64 | 188.57 | 27.88 | 256.73 | 0.4742 | 1172.7 | 999999 | |
| 6.75 | -4.00 | 3.79 | -4.00 | -10.40 | 188.51 | 27.83 | 257.21 | 0.4727 | 1233.9 | 999999 | |
| 2.13 | -4.00 | 1.20 | -4.00 | -11.04 | 188.51 | 27.82 | 255.88 | 0.4743 | 939.6 | 999999 | |
| 0.80 | -4.00 | 0.45 | -4.00 | -11.16 | 188.48 | 27.80 | 255.61 | 0.4743 | 792.0 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.70 | -14.08 | 188.69 | 28.00 | 249.77 | 0.4873 | 493.0 | 375.9 | |
| 1.15 | -4.00 | 0.65 | -4.00 | -10.48 | 188.17 | 27.49 | 256.94 | 0.4678 | 1076.9 | 999999 | |
| 3.11 | 11.81 | 1.74 | 6.61 | -11.24 | 188.14 | 27.46 | 255.33 | 0.4694 | 824.7 | 412.0 | |
| 0.00 | 0.62 | 0.00 | 0.35 | -14.24 | 188.46 | 27.78 | 249.32 | 0.4848 | 534.0 | 459.6 | |
| 1.69 | -4.00 | 0.94 | -4.00 | -10.61 | 187.94 | 27.26 | 256.59 | 0.4647 | 1111.1 | 999999 | |
| 0.00 | 2.13 | 0.00 | 1.20 | -13.82 | 188.20 | 27.51 | 250.02 | 0.4792 | 716.0 | 603.7 | |
| 0.00 | 7.19 | 0.00 | 4.06 | -14.19 | 188.14 | 27.45 | 249.24 | 0.4799 | 808.0 | 671.0 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -13.01 | 187.99 | 27.31 | 251.58 | 0.4731 | 846.0 | 663.1 | |
| 0.00 | 4.71 | 0.00 | 2.62 | -10.59 | 187.60 | 26.91 | 256.50 | 0.4594 | 725.0 | 850.3 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -8.38 | 187.41 | 26.73 | 261.26 | 0.4520 | 798.0 | 700.6 | |
| 0.00 | 2.84 | 0.00 | 1.58 | -8.75 | 187.34 | 26.65 | 260.43 | 0.4515 | 911.0 | 651.8 | |
| 0.36 | 3.64 | 0.20 | 2.05 | -13.90 | 187.75 | 27.07 | 249.61 | 0.4731 | 960.8 | 847.7 | |
| 0.00 | 1.60 | 0.00 | 0.90 | -13.17 | 187.66 | 26.98 | 251.07 | 0.4689 | 948.0 | 675.6 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -9.18 | 187.20 | 26.52 | 259.45 | 0.4502 | 861.0 | 752.9 | |
| 1.33 | 3.37 | 0.74 | 1.87 | -10.54 | 187.18 | 26.50 | 256.44 | 0.4530 | 1063.4 | 892.0 | |
| 0.62 | 3.82 | 0.35 | 2.12 | -11.33 | 187.15 | 26.47 | 254.71 | 0.4549 | -873.1 | -614.2 | |
| 0.53 | 1.69 | 0.30 | 0.94 | -11.49 | 186.96 | 26.28 | 254.29 | 0.4525 | -900.7 | -758.1 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -10.75 | 186.38 | 25.69 | 255.66 | 0.4415 | 126.0 | 148.7 | |
| 0.00 | 3.64 | 0.00 | 2.02 | -13.68 | 186.34 | 25.65 | 249.25 | 0.4517 | 829.0 | 738.4 | |
| 6.66 | 62.69 | 3.65 | 34.14 | -11.15 | 185.36 | 24.68 | 254.29 | 0.4273 | -703.1 | -672.8 | |
| 0.44 | 1.42 | 0.24 | 0.78 | -11.74 | 185.08 | 24.39 | 252.80 | 0.4251 | -695.6 | -546.2 | |
| 0.00 | 1.33 | 0.00 | 0.73 | -10.08 | 184.90 | 24.22 | 256.60 | 0.4169 | -771.0 | -605.8 | |
| 2.84 | -32.00 | 1.55 | -32.00 | -11.20 | 184.96 | 24.28 | 253.99 | 0.4213 | -1071.6 | 999999 | |
| 0.00 | 2.40 | 0.00 | 1.31 | -11.53 | 184.92 | 24.24 | 253.20 | 0.4220 | -500.0 | -366.4 | |
| 4.97 | -32.00 | 2.71 | -32.00 | -11.09 | 184.61 | 23.93 | 254.07 | 0.4157 | -1016.9 | 999999 | |
| 6.57 | -32.00 | 3.57 | -32.00 | -10.91 | 184.37 | 23.68 | 254.36 | 0.4113 | -1076.5 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -14.02 | 184.33 | 23.64 | 247.13 | 0.4240 | -855.0 | -706.9 | |
| 0.00 | 3.64 | 0.00 | 1.97 | -9.54 | 183.92 | 23.24 | 257.51 | 0.4003 | -798.0 | -672.3 | |
| 2.66 | -32.00 | 1.44 | -32.00 | -10.81 | 183.79 | 23.10 | 254.30 | 0.4020 | -1040.1 | 999999 | |
| 0.00 | 1.51 | 0.00 | 0.82 | -10.33 | 183.75 | 23.06 | 255.47 | 0.3999 | -851.0 | -673.2 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -8.37 | 183.62 | 22.93 | 260.33 | 0.3927 | -586.0 | -482.6 | |
| 0.00 | 1.33 | 0.00 | 0.72 | -9.73 | 183.67 | 22.99 | 256.93 | 0.3968 | -920.0 | -705.5 | |
| 0.00 | 1.69 | 0.00 | 0.91 | -9.48 | 183.62 | 22.94 | 257.51 | 0.3954 | -915.0 | -751.5 | |
| 0.00 | 1.78 | 0.00 | 0.95 | -7.53 | 183.30 | 22.62 | 262.39 | 0.3863 | -1042.0 | -801.7 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -9.51 | 182.80 | 22.11 | 257.08 | 0.3825 | -711.0 | -466.7 | |
| 11.10 | 22.73 | 5.98 | 12.24 | -12.30 | 182.81 | 22.13 | 250.06 | 0.3932 | 1179.5 | 780.5 | |
| 4.71 | -48.00 | 2.53 | -48.00 | -12.58 | 182.74 | 22.05 | 249.33 | 0.3933 | 1026.5 | 999999 | |
| 0.00 | 1.86 | 0.00 | 1.01 | -17.16 | 181.10 | 20.41 | 237.04 | 0.3988 | 803.0 | 607.8 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -17.29 | 180.98 | 20.29 | 236.62 | 0.3982 | 678.0 | 565.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
