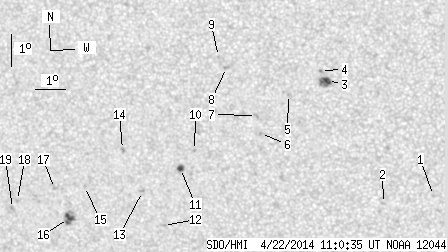

SDO HMI 2014-04-22 11:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.57 | 49.11 | 5.77 | 26.67 | -19.82 | 141.55 | -19.13 | 130.79 | 0.4054 | 276.5 | 173.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-22 11:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.65 | -21.17 | 149.84 | -10.84 | 147.94 | 0.3319 | 808.0 | 630.1 | |
| 0.00 | 1.78 | 0.00 | 0.94 | -21.39 | 148.17 | -12.51 | 144.64 | 0.3501 | -363.0 | -284.9 | |
| 3.29 | 9.77 | 1.72 | 5.11 | -17.53 | 146.66 | -14.02 | 133.53 | 0.3202 | 1173.8 | 821.3 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -17.21 | 146.46 | -14.23 | 132.39 | 0.3193 | 938.0 | 795.4 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -17.93 | 145.35 | -15.33 | 132.04 | 0.3403 | 597.0 | 408.1 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -19.12 | 144.31 | -16.38 | 132.88 | 0.3651 | 908.0 | 726.1 | |
| 0.00 | 2.04 | 0.00 | 1.08 | -18.55 | 144.23 | -16.45 | 131.55 | 0.3603 | 908.0 | 699.1 | |
| 0.00 | 2.04 | 0.00 | 1.08 | -17.05 | 143.39 | -17.29 | 126.80 | 0.3565 | 927.0 | 749.5 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -16.70 | 143.16 | -17.52 | 125.65 | 0.3565 | 714.0 | 564.7 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -19.59 | 142.05 | -18.64 | 130.40 | 0.3971 | 822.0 | 595.8 | |
| 2.13 | 3.73 | 1.16 | 2.02 | -20.13 | 141.50 | -19.18 | 130.74 | 0.4089 | 982.7 | 815.5 | |
| 0.00 | 1.86 | 0.00 | 1.03 | -21.90 | 140.67 | -20.01 | 132.97 | 0.4357 | 906.0 | 676.2 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -20.81 | 140.11 | -20.58 | 130.22 | 0.4321 | 729.0 | 448.2 | |
| 0.00 | 2.13 | 0.00 | 1.17 | -19.48 | 139.61 | -21.08 | 127.03 | 0.4264 | 900.0 | 699.8 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -20.59 | 138.13 | -22.55 | 127.47 | 0.4542 | -754.0 | -598.8 | |
| 5.15 | 12.08 | 2.89 | 6.77 | -21.58 | 137.41 | -23.28 | 128.47 | 0.4713 | -974.9 | -727.8 | |
| 0.00 | 1.42 | 0.00 | 0.80 | -20.62 | 137.08 | -23.61 | 126.39 | 0.4675 | -755.0 | -637.5 | |
| 0.00 | 1.95 | 0.00 | 1.11 | -20.95 | 135.71 | -24.98 | 125.62 | 0.4871 | -789.0 | -570.5 | |
| 0.00 | 1.78 | 0.00 | 1.01 | -21.19 | 135.49 | -25.20 | 125.84 | 0.4917 | -818.0 | -704.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
