SDO HMI 2014-04-22 11:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.58 | 0.00 | 6.56 | -19.72 | 125.91 | -34.77 | 116.60 | 0.6028 | 531.2 | 533.2 | |
|
previous
or next observation for the same group /

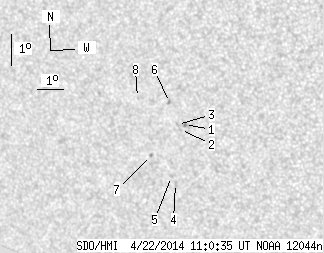

back to the solar disc SDO HMI 2014-04-22 11:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.78 | 0.00 | 1.09 | -19.27 | 126.51 | -34.17 | 116.20 | 0.5931 | 908.0 | 746.2 | |
| 0.00 | 1.07 | 0.00 | 0.66 | -19.42 | 126.32 | -34.36 | 116.34 | 0.5962 | 441.0 | 453.1 | |
| 0.00 | 1.51 | 0.00 | 0.93 | -19.26 | 126.25 | -34.44 | 116.04 | 0.5964 | 638.0 | 561.8 | |
| 0.00 | 1.60 | 0.00 | 1.00 | -21.09 | 125.70 | -34.99 | 118.62 | 0.6117 | 848.0 | 584.5 | |
| 0.00 | 1.24 | 0.00 | 0.78 | -20.86 | 125.60 | -35.08 | 118.22 | 0.6118 | 691.0 | 500.6 | |
| 0.00 | 1.69 | 0.00 | 1.04 | -18.57 | 126.10 | -34.58 | 114.86 | 0.5952 | 752.0 | 568.4 | |
| 0.00 | 1.33 | 0.00 | 0.84 | -20.17 | 125.00 | -35.69 | 116.85 | 0.6160 | 605.0 | 501.1 | |
| 0.00 | 0.36 | 0.00 | 0.22 | -18.35 | 124.91 | -35.78 | 113.97 | 0.6095 | -633.0 | -560.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
