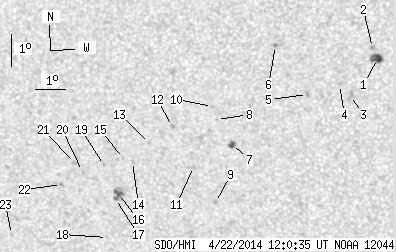

SDO HMI 2014-04-22 12:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.09 | 49.40 | 5.96 | 26.77 | -19.75 | 141.15 | -18.99 | 130.81 | 0.4024 | 227.8 | 153.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-22 12:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.59 | 8.88 | 2.92 | 4.63 | -17.56 | 146.63 | -13.50 | 134.67 | 0.3144 | 1082.7 | 768.1 | |
| 0.00 | 1.86 | 0.00 | 0.97 | -17.22 | 146.50 | -13.64 | 133.57 | 0.3122 | 957.0 | 674.4 | |
| 0.00 | 4.26 | 0.00 | 2.24 | -18.69 | 145.66 | -14.48 | 135.32 | 0.3383 | 761.0 | 644.4 | |
| 0.00 | 0.89 | 0.00 | 0.47 | -18.34 | 145.33 | -14.81 | 133.93 | 0.3383 | 729.0 | 603.7 | |
| 0.00 | 1.69 | 0.00 | 0.89 | -18.62 | 144.25 | -15.89 | 132.64 | 0.3542 | 1002.0 | 775.7 | |
| 0.00 | 1.51 | 0.00 | 0.80 | -17.09 | 143.34 | -16.80 | 127.65 | 0.3504 | 889.0 | 765.4 | |
| 2.13 | 4.53 | 1.15 | 2.45 | -20.11 | 141.54 | -18.60 | 131.53 | 0.4017 | 979.4 | 680.2 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -19.32 | 141.13 | -19.01 | 129.35 | 0.3992 | 633.0 | 486.7 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -21.91 | 140.75 | -19.39 | 133.84 | 0.4287 | 859.0 | 700.2 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -18.91 | 141.04 | -19.09 | 128.39 | 0.3965 | 635.0 | 524.7 | |
| 0.00 | 1.42 | 0.00 | 0.78 | -20.76 | 140.16 | -19.98 | 130.90 | 0.4245 | 758.0 | 602.6 | |
| 0.00 | 1.78 | 0.00 | 0.97 | -19.49 | 139.61 | -20.52 | 127.73 | 0.4196 | 819.0 | 692.7 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -20.00 | 138.75 | -21.38 | 127.68 | 0.4347 | 652.0 | 524.1 | |
| 0.00 | 1.60 | 0.00 | 0.88 | -20.54 | 138.08 | -22.05 | 127.94 | 0.4477 | -843.0 | -603.8 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -20.44 | 137.79 | -22.35 | 127.41 | 0.4504 | -675.0 | -509.5 | |
| 2.75 | 9.06 | 1.54 | 5.06 | -21.53 | 137.44 | -22.70 | 129.02 | 0.4640 | -1066.1 | -806.8 | |
| 0.62 | -16.00 | 0.35 | -16.00 | -21.68 | 137.31 | -22.83 | 129.15 | 0.4669 | -767.6 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -22.90 | 136.81 | -23.33 | 130.73 | 0.4834 | -643.0 | -514.9 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -20.63 | 137.09 | -23.04 | 127.02 | 0.4607 | -678.0 | -547.0 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -20.79 | 136.29 | -23.84 | 126.47 | 0.4719 | -767.0 | -693.3 | |
| 0.00 | 1.60 | 0.00 | 0.90 | -20.50 | 136.06 | -24.08 | 125.70 | 0.4725 | -579.0 | -556.8 | |
| 0.00 | 1.42 | 0.00 | 0.80 | -21.18 | 135.48 | -24.65 | 126.34 | 0.4849 | -822.0 | -708.0 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -22.68 | 133.38 | -26.75 | 126.96 | 0.5218 | 618.0 | 535.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
