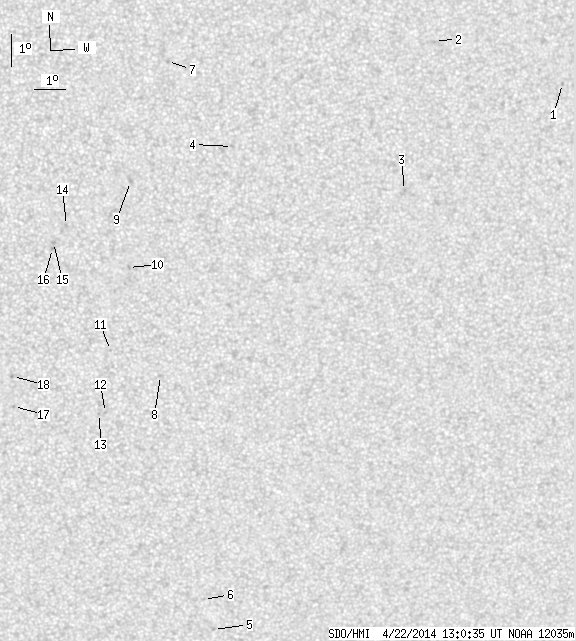

SDO HMI 2014-04-22 13:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 22.91 | 0.00 | 11.82 | -19.77 | 163.21 | 3.62 | 194.15 | 0.2748 | -721.7 | -595.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-22 13:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.60 | -13.37 | 175.58 | 15.99 | 240.91 | 0.3080 | -802.0 | -617.5 | |
| 0.00 | 0.71 | 0.00 | 0.36 | -12.14 | 171.43 | 11.85 | 237.79 | 0.2383 | -389.0 | -475.5 | |
| 0.00 | 1.07 | 0.00 | 0.55 | -16.74 | 170.72 | 11.13 | 222.00 | 0.2775 | -776.0 | -673.8 | |
| 0.00 | 1.51 | 0.00 | 0.76 | -15.45 | 165.21 | 5.62 | 207.42 | 0.2060 | -814.0 | -653.8 | |
| 0.00 | 1.24 | 0.00 | 0.69 | -30.82 | 165.21 | 5.62 | 190.92 | 0.4460 | -824.0 | -649.9 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -29.82 | 164.81 | 5.22 | 190.63 | 0.4294 | 585.0 | 437.2 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -12.87 | 163.13 | 3.55 | 203.71 | 0.1506 | -824.0 | -633.5 | |
| 0.00 | 2.04 | 0.00 | 1.06 | -22.58 | 163.09 | 3.50 | 190.57 | 0.3090 | -735.0 | -373.4 | |
| 0.00 | 2.49 | 0.00 | 1.26 | -16.54 | 162.03 | 2.44 | 191.50 | 0.2054 | -754.0 | -591.9 | |
| 0.00 | 1.60 | 0.00 | 0.82 | -19.20 | 162.00 | 2.41 | 189.18 | 0.2499 | -761.0 | -679.3 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -21.79 | 161.45 | 1.86 | 185.95 | 0.2921 | -894.0 | -741.8 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -23.76 | 161.31 | 1.72 | 184.88 | 0.3244 | -857.0 | -723.4 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -23.79 | 161.11 | 1.52 | 184.32 | 0.3247 | -861.0 | -687.1 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -17.90 | 160.02 | 0.43 | 181.82 | 0.2246 | -894.0 | -732.4 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -18.42 | 159.60 | 0.02 | 180.06 | 0.2334 | -933.0 | -828.1 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -18.61 | 159.57 | -0.02 | 179.93 | 0.2366 | -763.0 | -662.9 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -23.56 | 158.28 | -1.31 | 176.25 | 0.3207 | -812.0 | -630.6 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -22.61 | 158.26 | -1.33 | 175.96 | 0.3049 | -882.0 | -636.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
