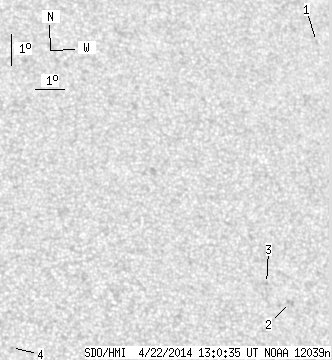

SDO HMI 2014-04-22 13:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.40 | 0.00 | 3.78 | 13.85 | 186.98 | 27.39 | 305.11 | 0.5469 | 370.5 | 378.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-22 13:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.63 | 21.18 | 190.60 | 31.02 | 311.78 | 0.6467 | -446.0 | -380.9 | |
| 0.00 | 3.46 | 0.00 | 2.05 | 12.61 | 188.14 | 28.56 | 302.04 | 0.5524 | 606.0 | 525.3 | |
| 0.00 | 0.89 | 0.00 | 0.52 | 13.18 | 187.37 | 27.78 | 303.64 | 0.5472 | 663.0 | 535.3 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 10.86 | 178.58 | 18.99 | 310.02 | 0.4191 | 659.0 | 541.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
