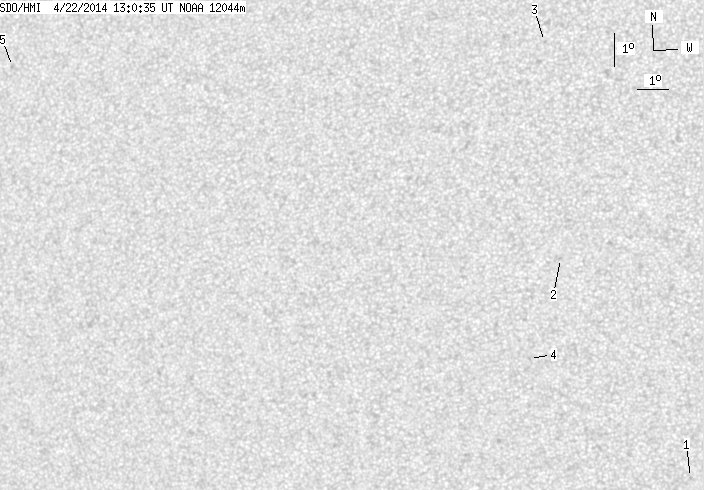

SDO HMI 2014-04-22 13:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.68 | 0.00 | 2.99 | -5.72 | 142.17 | -17.42 | 97.38 | 0.3127 | 747.4 | 583.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-22 13:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.54 | -13.49 | 149.87 | -9.72 | 132.24 | 0.2228 | 773.0 | 578.8 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -6.79 | 146.05 | -13.54 | 98.29 | 0.2359 | 883.0 | 673.6 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -0.24 | 145.66 | -13.93 | 71.57 | 0.2548 | 667.0 | 582.6 | |
| 0.00 | 1.07 | 0.00 | 0.55 | -9.78 | 144.96 | -14.62 | 109.16 | 0.2646 | 750.0 | 578.2 | |
| 0.00 | 1.24 | 0.00 | 0.72 | -0.39 | 128.21 | -31.38 | 82.62 | 0.5271 | 664.0 | 519.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
