SDO HMI 2014-04-22 14:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 100.49 | 361.40 | 56.40 | 203.85 | -11.01 | 187.21 | 28.17 | 255.94 | 0.4797 | 268.0 | 285.8 | |
|
previous
or next observation for the same group /

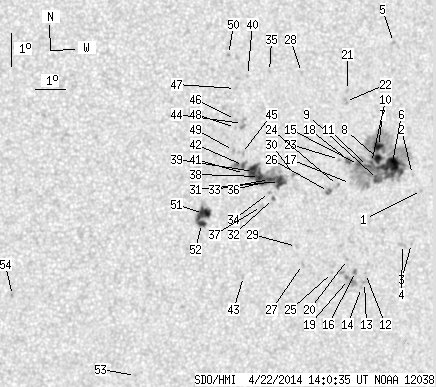

back to the solar disc SDO HMI 2014-04-22 14:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.67 | -11.31 | 190.28 | 31.24 | 256.44 | 0.5252 | 631.0 | 568.4 | |
| 0.00 | 1.15 | 0.00 | 0.67 | -10.84 | 189.90 | 30.86 | 257.23 | 0.5186 | 479.0 | 389.5 | |
| 0.00 | 1.24 | 0.00 | 0.72 | -12.93 | 190.12 | 31.09 | 253.35 | 0.5273 | 457.0 | 383.5 | |
| 0.00 | 3.46 | 0.00 | 2.01 | -12.98 | 189.81 | 30.77 | 253.15 | 0.5229 | 648.0 | 598.4 | |
| 0.00 | 1.69 | 0.00 | 0.96 | -6.89 | 188.87 | 29.83 | 264.82 | 0.4979 | 785.0 | 616.7 | |
| 28.14 | 198.59 | 16.15 | 113.46 | -10.66 | 189.13 | 30.09 | 257.36 | 0.5070 | 1009.7 | 509.4 | |
| 5.15 | -6.00 | 2.94 | -6.00 | -10.05 | 188.61 | 29.57 | 258.43 | 0.4980 | 1217.3 | 999999 | |
| 5.15 | -6.00 | 2.94 | -6.00 | -10.41 | 188.61 | 29.57 | 257.71 | 0.4988 | 1247.3 | 999999 | |
| 4.97 | -6.00 | 2.84 | -6.00 | -11.05 | 188.68 | 29.64 | 256.47 | 0.5012 | 874.4 | 999999 | |
| 0.80 | -6.00 | 0.46 | -6.00 | -10.54 | 188.41 | 29.37 | 257.39 | 0.4961 | 1142.8 | 999999 | |
| 1.69 | -6.00 | 0.96 | -6.00 | -10.67 | 188.28 | 29.24 | 257.10 | 0.4945 | 1130.2 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -13.91 | 188.61 | 29.57 | 250.86 | 0.5090 | 594.0 | 491.2 | |
| 0.00 | 1.69 | 0.00 | 0.97 | -14.19 | 188.61 | 29.57 | 250.34 | 0.5101 | 582.0 | 467.9 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -14.35 | 188.53 | 29.49 | 250.00 | 0.5095 | 555.0 | 483.1 | |
| 2.31 | -6.00 | 1.31 | -6.00 | -10.62 | 187.96 | 28.92 | 257.10 | 0.4896 | 1071.4 | 999999 | |
| 0.62 | 2.40 | 0.36 | 1.37 | -13.87 | 188.24 | 29.21 | 250.78 | 0.5037 | 700.0 | 599.2 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -11.21 | 187.74 | 28.70 | 255.84 | 0.4879 | -313.0 | -170.0 | |
| 2.04 | -6.00 | 1.15 | -6.00 | -10.51 | 187.60 | 28.56 | 257.20 | 0.4840 | 1099.7 | 999999 | |
| 0.00 | 11.01 | 0.00 | 6.30 | -14.12 | 188.03 | 28.99 | 250.18 | 0.5016 | 795.0 | 733.7 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -13.51 | 187.91 | 28.87 | 251.31 | 0.4977 | 931.0 | 821.4 | |
| 0.00 | 1.33 | 0.00 | 0.75 | -8.40 | 187.38 | 28.34 | 261.53 | 0.4767 | 843.0 | 631.5 | |
| 0.00 | 2.66 | 0.00 | 1.50 | -8.74 | 187.34 | 28.30 | 260.82 | 0.4766 | 671.0 | 594.3 | |
| 0.00 | 1.24 | 0.00 | 0.70 | -10.50 | 187.28 | 28.25 | 257.14 | 0.4793 | 873.0 | 679.0 | |
| 0.00 | 1.78 | 0.00 | 1.00 | -11.29 | 187.30 | 28.26 | 255.52 | 0.4815 | -484.0 | -516.2 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -13.93 | 187.44 | 28.40 | 250.26 | 0.4924 | 721.0 | 572.2 | |
| 0.00 | 3.64 | 0.00 | 2.05 | -11.48 | 187.00 | 27.96 | 255.01 | 0.4777 | -1063.0 | -834.1 | |
| 0.00 | 1.86 | 0.00 | 1.05 | -13.73 | 186.36 | 27.32 | 250.09 | 0.4761 | 818.0 | 726.5 | |
| 0.00 | 1.24 | 0.00 | 0.69 | -7.92 | 185.76 | 26.72 | 262.27 | 0.4513 | 645.0 | 506.6 | |
| 0.00 | 1.69 | 0.00 | 0.95 | -13.19 | 186.08 | 27.04 | 251.05 | 0.4700 | 50.0 | 128.9 | |
| 0.00 | 3.28 | 0.00 | 1.83 | -11.01 | 185.78 | 26.74 | 255.51 | 0.4580 | -632.0 | -313.8 | |
| 8.61 | 56.11 | 4.78 | 31.00 | -11.24 | 185.28 | 26.25 | 254.81 | 0.4513 | -748.8 | -381.5 | |
| 0.62 | 1.86 | 0.34 | 1.03 | -11.76 | 185.13 | 26.09 | 253.60 | 0.4507 | -601.3 | -439.1 | |
| 5.42 | -31.00 | 2.99 | -31.00 | -11.19 | 184.94 | 25.90 | 254.76 | 0.4459 | -999.6 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.79 | -11.59 | 184.98 | 25.94 | 253.92 | 0.4478 | -676.0 | -576.9 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -7.93 | 184.68 | 25.64 | 262.04 | 0.4345 | 762.0 | 583.6 | |
| 2.66 | -31.00 | 1.47 | -31.00 | -11.29 | 184.74 | 25.70 | 254.46 | 0.4433 | -872.5 | 999999 | |
| 0.00 | 2.04 | 0.00 | 1.13 | -12.02 | 184.75 | 25.71 | 252.85 | 0.4458 | 728.0 | 337.0 | |
| 7.19 | -31.00 | 3.96 | -31.00 | -11.11 | 184.59 | 25.55 | 254.78 | 0.4404 | -996.2 | 999999 | |
| 9.50 | -31.00 | 5.23 | -31.00 | -10.97 | 184.37 | 25.33 | 255.01 | 0.4367 | -1055.6 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -8.08 | 183.94 | 24.91 | 261.54 | 0.4233 | -707.0 | -530.5 | |
| 0.00 | 1.69 | 0.00 | 0.93 | -11.04 | 184.07 | 25.03 | 254.71 | 0.4324 | -714.0 | -592.6 | |
| 1.69 | 8.79 | 0.92 | 4.81 | -10.80 | 184.02 | 24.98 | 255.24 | 0.4308 | -1021.2 | -870.7 | |
| 0.00 | 1.86 | 0.00 | 1.03 | -14.17 | 184.36 | 25.33 | 247.98 | 0.4492 | -774.0 | -546.2 | |
| 0.00 | 5.50 | 0.00 | 3.01 | -9.53 | 183.88 | 24.84 | 258.11 | 0.4252 | -792.0 | -666.6 | |
| 0.00 | 2.49 | 0.00 | 1.36 | -10.44 | 183.92 | 24.88 | 256.02 | 0.4282 | -621.0 | -698.9 | |
| 0.00 | 1.42 | 0.00 | 0.78 | -9.42 | 183.64 | 24.60 | 258.29 | 0.4211 | -848.0 | -719.8 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -8.48 | 183.57 | 24.53 | 260.49 | 0.4181 | -577.0 | -489.8 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -9.66 | 183.65 | 24.62 | 257.73 | 0.4220 | -754.0 | -673.2 | |
| 0.00 | 1.60 | 0.00 | 0.87 | -10.36 | 183.64 | 24.60 | 256.09 | 0.4237 | -770.0 | -693.8 | |
| 0.00 | 1.42 | 0.00 | 0.77 | -7.47 | 183.27 | 24.23 | 262.87 | 0.4119 | -866.0 | -674.9 | |
| 10.56 | 22.81 | 5.76 | 12.43 | -12.30 | 182.80 | 23.76 | 251.13 | 0.4178 | 1181.8 | 715.9 | |
| 3.37 | -51.00 | 1.84 | -51.00 | -12.61 | 182.76 | 23.73 | 250.40 | 0.4186 | 978.8 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.29 | -17.32 | 181.05 | 22.02 | 238.46 | 0.4217 | 766.0 | 662.0 | |
| 0.00 | 1.33 | 0.00 | 0.70 | -14.98 | 176.71 | 17.67 | 238.81 | 0.3442 | 865.0 | 660.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
