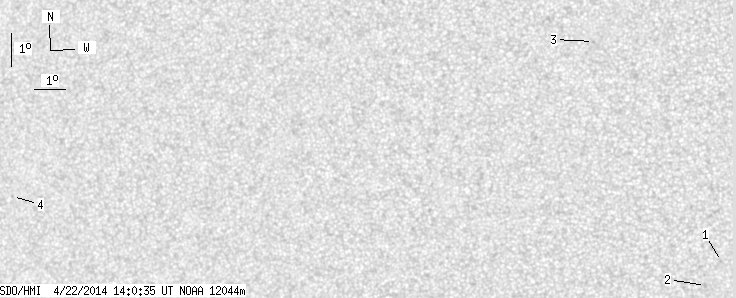

SDO HMI 2014-04-22 14:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.36 | 0.00 | 2.27 | -11.89 | 144.06 | -14.98 | 120.61 | 0.2916 | 705.0 | 572.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-22 14:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.45 | -13.49 | 149.85 | -9.19 | 133.84 | 0.2162 | 649.0 | 525.8 | |
| 0.00 | 1.78 | 0.00 | 0.90 | -14.22 | 149.32 | -9.72 | 134.65 | 0.2311 | 840.0 | 639.7 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -6.77 | 146.10 | -12.94 | 98.52 | 0.2259 | 856.0 | 666.0 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -10.79 | 126.51 | -32.53 | 102.23 | 0.5427 | 475.0 | 397.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
