SDO HMI 2014-04-22 15:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.62 | 21.66 | 0.34 | 11.24 | -20.67 | 162.76 | 4.27 | 194.69 | 0.2822 | -661.3 | -469.6 | |
|
previous
or next observation for the same group /

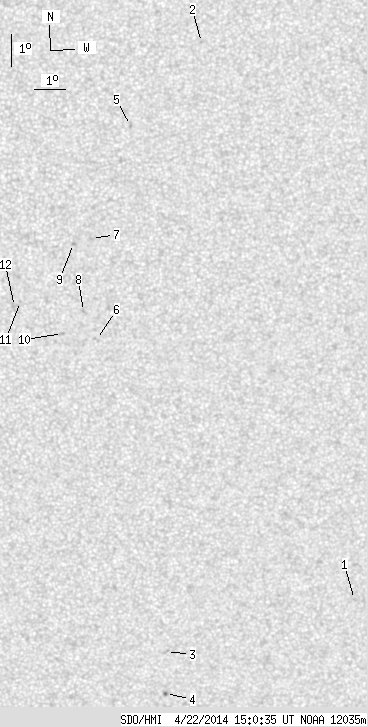

back to the solar disc SDO HMI 2014-04-22 15:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.68 | -27.71 | 171.40 | 12.91 | 206.99 | 0.4376 | -86.0 | -192.6 | |
| 0.00 | 0.98 | 0.00 | 0.49 | -10.41 | 165.36 | 6.87 | 231.00 | 0.1521 | -779.0 | -599.8 | |
| 0.00 | 2.40 | 0.00 | 1.31 | -29.50 | 165.01 | 6.52 | 193.39 | 0.4289 | 561.0 | 460.6 | |
| 0.62 | 1.78 | 0.34 | 0.98 | -30.90 | 165.07 | 6.58 | 192.67 | 0.4504 | -838.7 | -688.1 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -12.95 | 163.21 | 4.72 | 210.03 | 0.1611 | -909.0 | -780.9 | |
| 0.00 | 2.66 | 0.00 | 1.37 | -19.53 | 162.28 | 3.79 | 193.91 | 0.2601 | -651.0 | -550.8 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -16.41 | 162.06 | 3.57 | 196.76 | 0.2080 | -836.0 | -639.9 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -18.66 | 161.84 | 3.36 | 193.19 | 0.2441 | -945.0 | -741.0 | |
| 0.00 | 1.86 | 0.00 | 0.94 | -16.56 | 161.49 | 3.00 | 194.04 | 0.2080 | -834.0 | -639.5 | |
| 0.00 | 2.04 | 0.00 | 1.05 | -19.35 | 161.18 | 2.70 | 190.14 | 0.2532 | -945.0 | -662.5 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -18.36 | 159.84 | 1.35 | 185.52 | 0.2334 | -829.0 | -594.6 | |
| 0.00 | 4.44 | 0.00 | 2.26 | -18.51 | 159.65 | 1.16 | 184.69 | 0.2358 | -784.0 | -583.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
