SDO HMI 2014-04-22 15:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97.39 | 344.97 | 54.92 | 195.80 | -11.01 | 187.37 | 28.88 | 256.20 | 0.4900 | 244.2 | 320.8 | |
|
previous
or next observation for the same group /

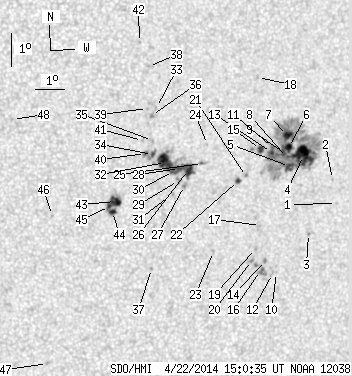

back to the solar disc SDO HMI 2014-04-22 15:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.52 | -12.04 | 190.58 | 32.09 | 255.35 | 0.5391 | 540.0 | 429.6 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -11.32 | 190.34 | 31.85 | 256.61 | 0.5340 | 585.0 | 507.9 | |
| 0.00 | 1.15 | 0.00 | 0.67 | -12.99 | 189.69 | 31.20 | 253.29 | 0.5291 | 708.0 | 641.5 | |
| 24.32 | 214.99 | 14.05 | 123.54 | -10.64 | 189.22 | 30.73 | 257.59 | 0.5163 | 1009.5 | 480.2 | |
| 5.41 | -4.00 | 3.11 | -4.00 | -10.99 | 188.76 | 30.27 | 256.77 | 0.5103 | 904.9 | 999999 | |
| 4.17 | -4.00 | 2.40 | -4.00 | -10.42 | 188.66 | 30.17 | 257.86 | 0.5076 | 1212.9 | 999999 | |
| 5.06 | -4.00 | 2.90 | -4.00 | -10.06 | 188.59 | 30.10 | 258.55 | 0.5058 | 1239.1 | 999999 | |
| 0.80 | -4.00 | 0.46 | -4.00 | -10.72 | 188.66 | 30.17 | 257.27 | 0.5082 | 1068.6 | 999999 | |
| 3.11 | -4.00 | 1.78 | -4.00 | -10.58 | 188.50 | 30.01 | 257.51 | 0.5056 | 1161.5 | 999999 | |
| 0.00 | 1.60 | 0.00 | 0.92 | -14.22 | 188.71 | 30.22 | 250.58 | 0.5194 | 417.0 | 373.3 | |
| 0.27 | -4.00 | 0.15 | -4.00 | -10.44 | 188.09 | 29.61 | 257.66 | 0.4994 | 947.7 | 999999 | |
| 0.00 | 1.60 | 0.00 | 0.92 | -14.26 | 188.57 | 30.08 | 250.44 | 0.5176 | 416.0 | 442.0 | |
| 2.31 | -4.00 | 1.32 | -4.00 | -10.59 | 188.08 | 29.59 | 257.35 | 0.4994 | 1089.9 | 999999 | |
| 0.00 | 1.86 | 0.00 | 1.07 | -13.88 | 188.26 | 29.78 | 251.03 | 0.5119 | 715.0 | 621.8 | |
| 3.20 | -4.00 | 1.82 | -4.00 | -10.52 | 187.68 | 29.19 | 257.38 | 0.4934 | 1048.5 | 999999 | |
| 0.00 | 7.28 | 0.00 | 4.19 | -14.19 | 188.13 | 29.64 | 250.37 | 0.5111 | 700.0 | 726.0 | |
| 0.00 | 0.53 | 0.00 | 0.30 | -12.82 | 187.94 | 29.46 | 252.92 | 0.5036 | 685.0 | 622.0 | |
| 0.00 | 1.24 | 0.00 | 0.70 | -8.35 | 187.38 | 28.89 | 261.73 | 0.4850 | 718.0 | 544.9 | |
| 0.00 | 1.42 | 0.00 | 0.81 | -13.53 | 187.86 | 29.37 | 251.52 | 0.5048 | 752.0 | 734.8 | |
| 0.00 | 1.95 | 0.00 | 1.12 | -13.90 | 187.77 | 29.28 | 250.76 | 0.5049 | 837.0 | 771.6 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -11.36 | 187.28 | 28.79 | 255.57 | 0.4895 | -455.0 | -352.2 | |
| 1.69 | 2.66 | 0.95 | 1.51 | -11.49 | 187.01 | 28.52 | 255.20 | 0.4860 | -871.2 | -662.7 | |
| 0.00 | 1.51 | 0.00 | 0.85 | -13.68 | 186.39 | 27.91 | 250.51 | 0.4844 | 870.0 | 667.1 | |
| 0.00 | 0.62 | 0.00 | 0.35 | -10.44 | 185.83 | 27.34 | 256.95 | 0.4655 | -649.0 | -549.6 | |
| 0.00 | 2.57 | 0.00 | 1.44 | -11.02 | 185.71 | 27.22 | 255.68 | 0.4653 | -632.0 | -332.8 | |
| 8.34 | 50.60 | 4.65 | 28.06 | -11.22 | 185.25 | 26.76 | 255.07 | 0.4590 | -813.9 | -448.8 | |
| 0.00 | 2.84 | 0.00 | 1.58 | -11.71 | 185.16 | 26.67 | 253.98 | 0.4592 | -555.0 | -274.2 | |
| 5.33 | -26.00 | 2.96 | -26.00 | -11.20 | 184.94 | 26.45 | 254.98 | 0.4542 | -984.5 | 999999 | |
| 0.00 | 3.20 | 0.00 | 1.78 | -11.57 | 184.94 | 26.45 | 254.19 | 0.4554 | -673.0 | -565.4 | |
| 2.31 | -26.00 | 1.28 | -26.00 | -11.30 | 184.74 | 26.25 | 254.68 | 0.4516 | -872.7 | 999999 | |
| 0.00 | 1.69 | 0.00 | 0.94 | -11.97 | 184.77 | 26.28 | 253.25 | 0.4543 | 682.0 | 535.9 | |
| 16.16 | -26.00 | 8.93 | -26.00 | -11.04 | 184.44 | 25.95 | 255.12 | 0.4463 | -1030.2 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -9.39 | 183.99 | 25.50 | 258.66 | 0.4351 | -558.0 | -450.4 | |
| 1.33 | 8.79 | 0.73 | 4.84 | -10.81 | 183.98 | 25.49 | 255.43 | 0.4386 | -1054.3 | -818.3 | |
| 0.00 | 1.95 | 0.00 | 1.07 | -10.39 | 183.94 | 25.45 | 256.37 | 0.4368 | -743.0 | -614.0 | |
| 0.00 | 2.04 | 0.00 | 1.12 | -9.64 | 183.84 | 25.35 | 258.05 | 0.4333 | -927.0 | -748.5 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -14.27 | 184.31 | 25.82 | 248.08 | 0.4569 | -787.0 | -626.6 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -8.16 | 183.63 | 25.15 | 261.40 | 0.4272 | -783.0 | -647.9 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -9.43 | 183.69 | 25.20 | 258.47 | 0.4305 | -886.0 | -737.2 | |
| 0.80 | -34.00 | 0.44 | -34.00 | -10.79 | 183.74 | 25.25 | 255.37 | 0.4349 | -1072.3 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.73 | -10.40 | 183.60 | 25.11 | 256.20 | 0.4316 | -827.0 | -605.1 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -7.45 | 183.29 | 24.80 | 263.01 | 0.4208 | -799.0 | -624.2 | |
| 7.90 | 20.95 | 4.32 | 11.46 | -12.28 | 182.86 | 24.37 | 251.54 | 0.4268 | 1169.5 | 747.3 | |
| 2.66 | -43.00 | 1.46 | -43.00 | -12.59 | 182.79 | 24.30 | 250.80 | 0.4270 | 975.0 | 999999 | |
| 2.22 | -43.00 | 1.21 | -43.00 | -12.44 | 182.67 | 24.18 | 251.07 | 0.4247 | 1250.2 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -12.77 | 180.79 | 22.30 | 249.02 | 0.3980 | 844.0 | 645.5 | |
| 0.00 | 1.69 | 0.00 | 0.92 | -17.30 | 181.11 | 22.63 | 239.11 | 0.4298 | 876.0 | 689.7 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -9.91 | 179.24 | 20.75 | 255.33 | 0.3624 | 753.0 | 539.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
