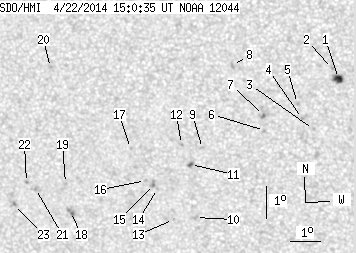

SDO HMI 2014-04-22 15:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.68 | 44.92 | 2.96 | 24.05 | -19.53 | 141.62 | -16.87 | 133.58 | 0.3755 | 515.3 | 267.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-22 15:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.88 | 7.99 | 2.53 | 4.14 | -17.56 | 146.73 | -11.76 | 138.49 | 0.2944 | 1094.0 | 707.0 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -17.25 | 146.56 | -11.93 | 137.34 | 0.2926 | 936.0 | 745.5 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -19.12 | 145.80 | -12.68 | 139.90 | 0.3234 | 826.0 | 611.9 | |
| 0.00 | 1.07 | 0.00 | 0.56 | -18.77 | 145.47 | -13.01 | 138.44 | 0.3228 | 807.0 | 661.2 | |
| 0.00 | 1.42 | 0.00 | 0.74 | -18.31 | 145.35 | -13.14 | 137.14 | 0.3187 | 840.0 | 636.1 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -19.12 | 144.20 | -14.29 | 136.62 | 0.3410 | 737.0 | 656.7 | |
| 0.00 | 2.31 | 0.00 | 1.21 | -18.66 | 144.21 | -14.28 | 135.63 | 0.3357 | 1087.0 | 873.8 | |
| 0.00 | 2.40 | 0.00 | 1.26 | -17.09 | 143.33 | -15.16 | 130.38 | 0.3296 | 931.0 | 732.6 | |
| 0.00 | 1.51 | 0.00 | 0.80 | -19.63 | 142.09 | -16.39 | 133.95 | 0.3708 | 815.0 | 632.8 | |
| 0.00 | 2.04 | 0.00 | 1.10 | -21.78 | 141.61 | -16.88 | 137.34 | 0.3995 | 842.0 | 679.7 | |
| 0.80 | 2.13 | 0.43 | 1.14 | -20.12 | 141.64 | -16.85 | 134.20 | 0.3813 | 1018.7 | 876.1 | |
| 0.00 | 1.42 | 0.00 | 0.76 | -19.49 | 141.41 | -17.08 | 132.55 | 0.3774 | 908.0 | 679.1 | |
| 0.00 | 0.80 | 0.00 | 0.43 | -21.83 | 140.86 | -17.63 | 136.24 | 0.4082 | 770.0 | 565.6 | |
| 0.00 | 1.24 | 0.00 | 0.67 | -20.84 | 140.44 | -18.05 | 133.76 | 0.4026 | 617.0 | 474.1 | |
| 0.00 | 3.11 | 0.00 | 1.68 | -20.71 | 140.32 | -18.17 | 133.33 | 0.4027 | 833.0 | 662.5 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -20.58 | 140.07 | -18.42 | 132.71 | 0.4043 | 630.0 | 463.6 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -19.57 | 139.68 | -18.80 | 130.15 | 0.3990 | 827.0 | 692.2 | |
| 0.00 | 3.99 | 0.00 | 2.21 | -21.48 | 137.37 | -21.12 | 130.79 | 0.4447 | -1108.0 | -930.9 | |
| 0.00 | 1.51 | 0.00 | 0.83 | -20.59 | 137.33 | -21.16 | 129.10 | 0.4373 | -771.0 | -606.6 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -16.99 | 137.30 | -21.19 | 121.71 | 0.4081 | 698.0 | 594.1 | |
| 0.00 | 1.69 | 0.00 | 0.94 | -20.72 | 136.27 | -22.22 | 128.09 | 0.4513 | -922.0 | -656.4 | |
| 0.00 | 1.42 | 0.00 | 0.79 | -20.52 | 135.98 | -22.50 | 127.40 | 0.4531 | -789.0 | -660.5 | |
| 0.00 | 2.22 | 0.00 | 1.24 | -21.19 | 135.42 | -23.07 | 128.02 | 0.4656 | -877.0 | -740.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
