SDO HMI 2014-04-22 16:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.33 | 0.00 | 8.50 | -20.20 | 164.78 | 6.84 | 204.08 | 0.2987 | -665.4 | -515.6 | |
|
previous
or next observation for the same group /

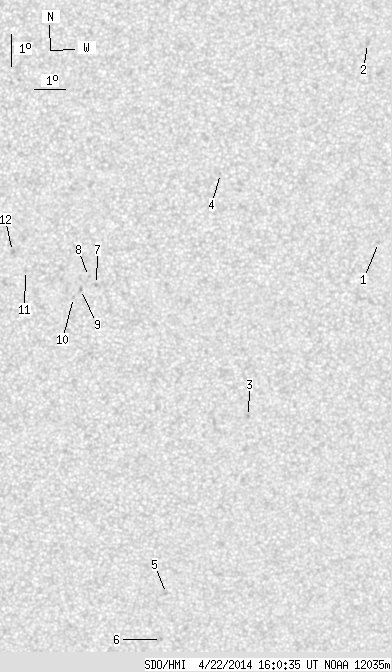

back to the solar disc SDO HMI 2014-04-22 16:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.33 | 0.00 | 0.70 | -18.12 | 171.36 | 13.42 | 223.87 | 0.3197 | -800.0 | -565.1 | |
| 0.00 | 2.49 | 0.00 | 1.27 | -12.03 | 170.63 | 12.69 | 239.85 | 0.2497 | -655.0 | -480.1 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -23.63 | 167.49 | 9.56 | 205.36 | 0.3567 | -793.0 | -638.1 | |
| 0.00 | 0.62 | 0.00 | 0.32 | -16.06 | 166.16 | 8.23 | 215.46 | 0.2381 | -678.0 | -474.4 | |
| 0.00 | 1.42 | 0.00 | 0.78 | -29.40 | 165.12 | 7.18 | 194.74 | 0.4298 | 640.0 | 441.5 | |
| 0.00 | 1.24 | 0.00 | 0.69 | -30.93 | 165.05 | 7.12 | 193.63 | 0.4527 | -909.0 | -741.6 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -19.53 | 162.33 | 4.40 | 196.04 | 0.2627 | -750.0 | -659.7 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -19.28 | 162.07 | 4.14 | 195.40 | 0.2575 | -761.0 | -579.6 | |
| 0.00 | 1.95 | 0.00 | 1.00 | -19.68 | 161.83 | 3.89 | 194.12 | 0.2631 | -835.0 | -661.9 | |
| 0.00 | 0.89 | 0.00 | 0.46 | -19.93 | 161.61 | 3.67 | 193.12 | 0.2663 | -782.0 | -599.8 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -19.10 | 160.06 | 2.12 | 188.16 | 0.2476 | -767.0 | -539.3 | |
| 0.00 | 1.78 | 0.00 | 0.90 | -18.51 | 159.64 | 1.70 | 186.86 | 0.2367 | -895.0 | -743.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
