SDO HMI 2014-04-22 16:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.22 | 407.58 | 35.99 | 221.69 | 17.75 | 166.63 | 8.69 | 339.60 | 0.4140 | -677.0 | -305.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-22 16:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

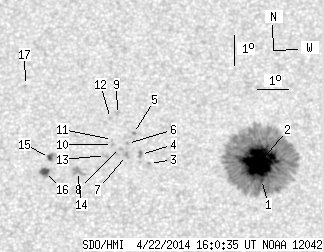

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.98 | 370.49 | 0.53 | 201.71 | 17.16 | 167.12 | 9.18 | 337.92 | 0.4073 | -1216.7 | -409.0 | |
| 60.09 | -1.00 | 32.70 | -1.00 | 17.74 | 167.12 | 9.18 | 338.47 | 0.4159 | -1396.9 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.67 | 17.64 | 163.57 | 5.64 | 346.31 | 0.3972 | 711.0 | 604.7 | |
| 0.00 | 2.57 | 0.00 | 1.39 | 17.93 | 163.30 | 5.36 | 347.13 | 0.4007 | 904.0 | 761.7 | |
| 0.00 | 1.24 | 0.00 | 0.67 | 18.62 | 163.09 | 5.16 | 347.98 | 0.4108 | 720.0 | 675.2 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 18.29 | 162.89 | 4.96 | 348.26 | 0.4050 | 793.0 | 644.6 | |
| 0.00 | 2.93 | 0.00 | 1.58 | 17.90 | 162.85 | 4.91 | 348.15 | 0.3987 | 1001.0 | 814.4 | |
| 0.00 | 0.89 | 0.00 | 0.48 | 18.16 | 162.67 | 4.73 | 348.72 | 0.4022 | 568.0 | 576.3 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 19.24 | 162.60 | 4.67 | 349.39 | 0.4190 | 757.0 | 513.3 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 18.26 | 162.41 | 4.48 | 349.35 | 0.4029 | 877.0 | 693.0 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 18.42 | 162.42 | 4.48 | 349.42 | 0.4055 | 664.0 | 513.2 | |
| 0.00 | 1.69 | 0.00 | 0.92 | 19.11 | 162.37 | 4.44 | 349.84 | 0.4162 | 635.0 | 486.6 | |
| 0.00 | 2.84 | 0.00 | 1.53 | 17.89 | 162.18 | 4.25 | 349.72 | 0.3965 | 951.0 | 748.5 | |
| 0.00 | 7.19 | 0.00 | 3.86 | 17.37 | 161.28 | 3.35 | 351.66 | 0.3858 | 1005.0 | 815.5 | |
| 1.60 | 4.97 | 0.86 | 2.67 | 17.82 | 160.40 | 2.47 | 353.96 | 0.3913 | 869.7 | 580.7 | |
| 3.55 | 6.12 | 1.90 | 3.28 | 17.36 | 160.24 | 2.30 | 354.24 | 0.3837 | 1082.9 | 818.0 | |
| 0.00 | 1.33 | 0.00 | 0.73 | 20.20 | 159.67 | 1.74 | 356.18 | 0.4281 | 764.0 | 632.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
