SDO HMI 2014-04-22 16:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.96 | 0.00 | 6.73 | -8.02 | 143.09 | -14.85 | 104.90 | 0.2728 | 844.0 | 666.1 | |
|
previous
or next observation for the same group /

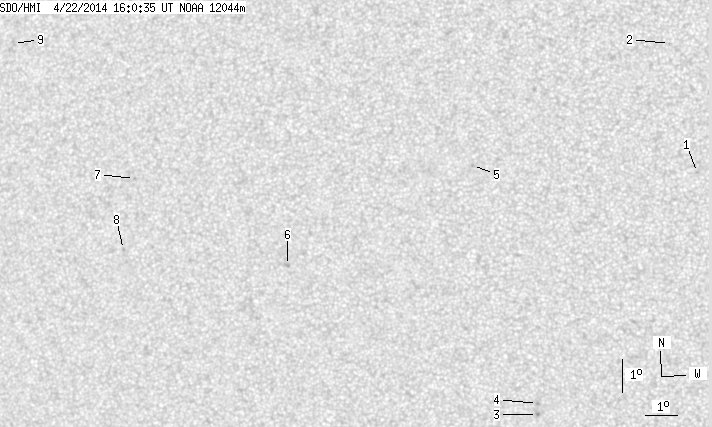

back to the solar disc SDO HMI 2014-04-22 16:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.40 | -6.96 | 154.38 | -3.55 | 119.36 | 0.0709 | 813.0 | 682.8 | |
| 0.00 | 1.15 | 0.00 | 0.57 | -3.06 | 153.56 | -4.37 | 66.42 | 0.0834 | 848.0 | 611.3 | |
| 0.00 | 1.51 | 0.00 | 0.77 | -14.23 | 149.29 | -8.65 | 137.97 | 0.2187 | 905.0 | 792.4 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -13.90 | 149.30 | -8.64 | 136.93 | 0.2144 | 959.0 | 710.7 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -6.66 | 147.51 | -10.43 | 99.71 | 0.1832 | 825.0 | 552.3 | |
| 0.00 | 2.13 | 0.00 | 1.10 | -9.56 | 141.62 | -16.32 | 106.72 | 0.2906 | 863.0 | 729.3 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -6.79 | 136.83 | -21.10 | 95.97 | 0.3610 | 810.0 | 678.7 | |
| 0.00 | 1.42 | 0.00 | 0.76 | -8.92 | 136.35 | -21.58 | 101.62 | 0.3726 | 823.0 | 622.1 | |
| 0.00 | 2.22 | 0.00 | 1.21 | -2.59 | 133.00 | -24.93 | 85.43 | 0.4242 | 750.0 | 603.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
