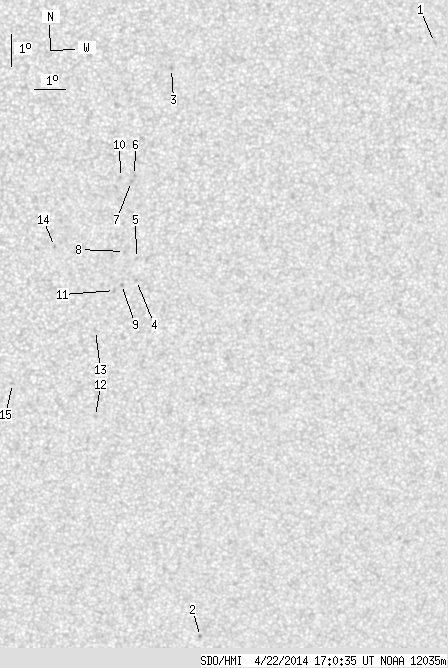

SDO HMI 2014-04-22 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.99 | 0.00 | 10.29 | -19.35 | 162.44 | 5.05 | 199.79 | 0.2701 | -812.4 | -630.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-22 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.51 | 0.00 | 0.78 | -12.13 | 171.44 | 14.06 | 241.87 | 0.2705 | -682.0 | -557.5 | |
| 0.00 | 1.33 | 0.00 | 0.74 | -30.99 | 165.04 | 7.65 | 194.57 | 0.4557 | -794.0 | -642.7 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -13.03 | 163.23 | 5.85 | 215.24 | 0.1728 | -966.0 | -749.9 | |
| 0.00 | 1.07 | 0.00 | 0.55 | -19.55 | 162.30 | 4.91 | 197.76 | 0.2657 | -862.0 | -702.0 | |
| 0.00 | 1.07 | 0.00 | 0.55 | -18.87 | 162.28 | 4.89 | 198.56 | 0.2547 | -818.0 | -688.6 | |
| 0.00 | 1.86 | 0.00 | 0.94 | -16.31 | 162.15 | 4.76 | 202.06 | 0.2132 | -691.0 | -477.1 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -16.49 | 162.06 | 4.67 | 201.35 | 0.2155 | -806.0 | -665.7 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -18.65 | 161.89 | 4.50 | 197.46 | 0.2492 | -866.0 | -730.9 | |
| 0.00 | 1.07 | 0.00 | 0.55 | -19.68 | 161.82 | 4.44 | 196.00 | 0.2654 | -821.0 | -723.3 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -16.37 | 161.71 | 4.32 | 200.10 | 0.2115 | -848.0 | -660.4 | |
| 0.00 | 1.51 | 0.00 | 0.78 | -19.87 | 161.60 | 4.22 | 195.05 | 0.2675 | -829.0 | -602.5 | |
| 0.00 | 1.69 | 0.00 | 0.88 | -23.84 | 161.09 | 3.70 | 190.35 | 0.3302 | -877.0 | -654.5 | |
| 0.00 | 1.42 | 0.00 | 0.73 | -21.12 | 161.02 | 3.63 | 192.00 | 0.2856 | -602.0 | -480.5 | |
| 0.00 | 0.98 | 0.00 | 0.50 | -18.51 | 159.66 | 2.27 | 189.13 | 0.2380 | -925.0 | -738.1 | |
| 0.00 | 1.60 | 0.00 | 0.83 | -22.80 | 158.34 | 0.96 | 182.89 | 0.3077 | -799.0 | -583.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
