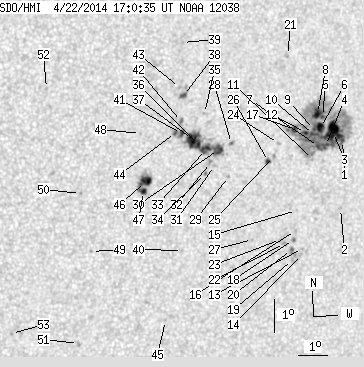

SDO HMI 2014-04-22 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96.30 | 348.24 | 54.92 | 199.81 | -10.98 | 187.37 | 29.99 | 256.59 | 0.5063 | 259.0 | 286.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-22 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.31 | 215.24 | 1.35 | 125.21 | -10.78 | 189.61 | 32.22 | 257.70 | 0.5382 | 632.8 | 459.0 | |
| 0.00 | 1.24 | 0.00 | 0.73 | -12.85 | 189.80 | 32.42 | 253.99 | 0.5459 | 501.0 | 409.7 | |
| 21.21 | -1.00 | 12.40 | -1.00 | -10.56 | 189.25 | 31.87 | 258.03 | 0.5327 | 1018.4 | 999999 | |
| 3.37 | -1.00 | 1.97 | -1.00 | -10.96 | 189.01 | 31.63 | 257.21 | 0.5300 | 841.7 | 999999 | |
| 1.24 | -1.00 | 0.72 | -1.00 | -10.09 | 188.81 | 31.42 | 258.80 | 0.5253 | 935.9 | 999999 | |
| 5.77 | -1.00 | 3.35 | -1.00 | -10.43 | 188.77 | 31.39 | 258.16 | 0.5254 | 1129.2 | 999999 | |
| 1.78 | -1.00 | 1.03 | -1.00 | -11.00 | 188.76 | 31.38 | 257.07 | 0.5265 | 870.5 | 999999 | |
| 6.12 | -1.00 | 3.55 | -1.00 | -10.01 | 188.62 | 31.23 | 258.92 | 0.5224 | 1179.3 | 999999 | |
| 0.27 | -1.00 | 0.15 | -1.00 | -10.50 | 188.56 | 31.18 | 257.98 | 0.5225 | 1216.0 | 999999 | |
| 3.37 | -1.00 | 1.96 | -1.00 | -10.65 | 188.54 | 31.16 | 257.68 | 0.5226 | 1130.6 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -11.41 | 188.60 | 31.21 | 256.26 | 0.5250 | 594.0 | 491.2 | |
| 1.51 | -1.00 | 0.87 | -1.00 | -10.60 | 188.25 | 30.87 | 257.70 | 0.5182 | 1087.6 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -14.12 | 188.60 | 31.22 | 251.21 | 0.5331 | 609.0 | 533.0 | |
| 0.00 | 1.15 | 0.00 | 0.67 | -14.30 | 188.60 | 31.21 | 250.87 | 0.5336 | 396.0 | 374.6 | |
| 0.00 | 0.27 | 0.00 | 0.15 | -12.98 | 188.22 | 30.84 | 253.18 | 0.5239 | 445.0 | 488.0 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -13.58 | 188.27 | 30.89 | 252.06 | 0.5266 | 501.0 | 416.3 | |
| 2.93 | -1.00 | 1.69 | -1.00 | -10.53 | 187.85 | 30.47 | 257.73 | 0.5122 | 1091.5 | 999999 | |
| 0.00 | 1.78 | 0.00 | 1.03 | -13.86 | 188.24 | 30.86 | 251.53 | 0.5271 | 730.0 | 618.3 | |
| 0.00 | 1.60 | 0.00 | 0.93 | -14.47 | 188.29 | 30.91 | 250.43 | 0.5300 | 712.0 | 582.9 | |
| 0.53 | 4.62 | 0.31 | 2.69 | -14.17 | 188.21 | 30.83 | 250.95 | 0.5277 | 881.7 | 701.2 | |
| 0.00 | 1.95 | 0.00 | 1.12 | -8.31 | 187.39 | 30.01 | 262.01 | 0.5017 | 573.0 | 432.6 | |
| 0.00 | 2.13 | 0.00 | 1.24 | -14.00 | 187.93 | 30.55 | 251.15 | 0.5232 | 901.0 | 726.0 | |
| 0.00 | 1.51 | 0.00 | 0.87 | -13.88 | 187.77 | 30.39 | 251.30 | 0.5205 | 731.0 | 744.9 | |
| 0.00 | 1.33 | 0.00 | 0.76 | -10.97 | 187.33 | 29.95 | 256.71 | 0.5056 | -460.0 | -328.6 | |
| 0.00 | 1.51 | 0.00 | 0.86 | -11.37 | 187.20 | 29.82 | 255.88 | 0.5047 | -696.0 | -576.7 | |
| 1.51 | 2.75 | 0.86 | 1.57 | -11.53 | 187.04 | 29.66 | 255.52 | 0.5027 | -869.2 | -648.7 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -13.92 | 186.77 | 29.39 | 250.76 | 0.5066 | 564.0 | 497.1 | |
| 0.44 | 2.22 | 0.25 | 1.25 | -11.04 | 185.69 | 28.30 | 256.03 | 0.4815 | -578.4 | -447.0 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -12.04 | 185.69 | 28.31 | 253.99 | 0.4844 | -569.0 | -486.0 | |
| 6.39 | 58.31 | 3.59 | 32.60 | -11.24 | 185.25 | 27.87 | 255.46 | 0.4756 | -843.4 | -603.0 | |
| 0.00 | 1.69 | 0.00 | 0.95 | -11.73 | 185.17 | 27.78 | 254.42 | 0.4757 | -540.0 | -363.4 | |
| 0.00 | 2.22 | 0.00 | 1.25 | -11.64 | 185.02 | 27.63 | 254.53 | 0.4733 | -659.0 | -572.8 | |
| 6.30 | -30.00 | 3.53 | -30.00 | -11.26 | 184.80 | 27.42 | 255.26 | 0.4689 | -923.2 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.65 | -11.98 | 184.88 | 27.50 | 253.77 | 0.4723 | 735.0 | 677.1 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -10.17 | 184.66 | 27.28 | 257.51 | 0.4640 | 811.0 | 626.1 | |
| 3.64 | -30.00 | 2.03 | -30.00 | -11.11 | 184.55 | 27.16 | 255.45 | 0.4647 | -1034.1 | 999999 | |
| 12.51 | -30.00 | 6.98 | -30.00 | -10.97 | 184.33 | 26.94 | 255.67 | 0.4610 | -1051.7 | 999999 | |
| 1.78 | 6.04 | 0.98 | 3.35 | -9.65 | 183.90 | 26.51 | 258.39 | 0.4512 | -855.4 | -618.0 | |
| 0.00 | 1.42 | 0.00 | 0.79 | -8.06 | 183.74 | 26.36 | 261.90 | 0.4459 | -680.0 | -507.2 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -14.35 | 184.36 | 26.98 | 248.63 | 0.4739 | -708.0 | -588.8 | |
| 1.95 | -30.00 | 1.08 | -30.00 | -10.80 | 183.93 | 26.55 | 255.88 | 0.4546 | -1042.5 | 999999 | |
| 0.00 | 3.11 | 0.00 | 1.72 | -10.44 | 183.90 | 26.51 | 256.66 | 0.4531 | -908.0 | -748.3 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -9.42 | 183.74 | 26.36 | 258.86 | 0.4483 | -852.0 | -653.8 | |
| 0.89 | -30.00 | 0.49 | -30.00 | -10.78 | 183.72 | 26.34 | 255.85 | 0.4514 | -1045.7 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -16.51 | 184.07 | 26.68 | 244.13 | 0.4804 | 647.0 | 553.1 | |
| 8.17 | 20.33 | 4.51 | 11.22 | -12.30 | 182.85 | 25.46 | 252.10 | 0.4432 | 1163.6 | 786.2 | |
| 2.31 | -46.00 | 1.27 | -46.00 | -12.61 | 182.81 | 25.43 | 251.41 | 0.4439 | 941.3 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -10.85 | 182.54 | 25.15 | 255.19 | 0.4336 | -664.0 | -521.4 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -14.49 | 181.24 | 23.86 | 246.24 | 0.4297 | -714.0 | -570.1 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -12.74 | 180.69 | 23.30 | 249.81 | 0.4128 | 736.0 | 638.6 | |
| 0.00 | 1.95 | 0.00 | 1.08 | -17.32 | 181.15 | 23.77 | 240.15 | 0.4454 | 844.0 | 721.6 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -9.60 | 179.30 | 21.91 | 256.75 | 0.3797 | 631.0 | 473.2 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -17.09 | 178.83 | 21.44 | 238.34 | 0.4123 | 857.0 | 742.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
