SDO HMI 2014-04-22 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.26 | 0.00 | 8.43 | -9.23 | 141.73 | -15.65 | 109.76 | 0.2895 | 839.3 | 670.6 | |
|
previous
or next observation for the same group /

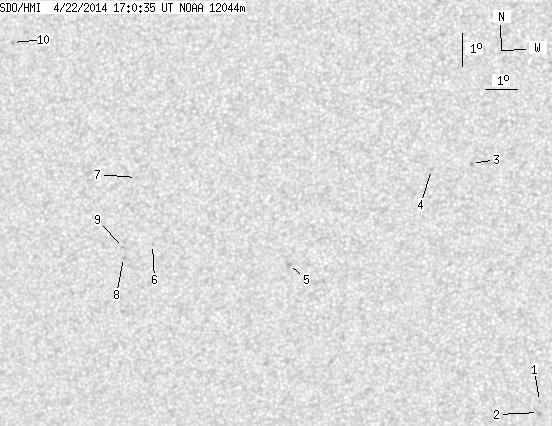

back to the solar disc SDO HMI 2014-04-22 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.45 | -13.87 | 149.34 | -8.04 | 138.86 | 0.2073 | 829.0 | 688.1 | |
| 0.00 | 3.11 | 0.00 | 1.57 | -14.21 | 149.30 | -8.08 | 139.79 | 0.2121 | 837.0 | 683.6 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -6.64 | 147.45 | -9.93 | 100.02 | 0.1748 | 939.0 | 768.0 | |
| 0.00 | 1.07 | 0.00 | 0.54 | -6.80 | 146.21 | -11.17 | 99.85 | 0.1961 | 921.0 | 644.1 | |
| 0.00 | 3.37 | 0.00 | 1.74 | -9.57 | 141.64 | -15.75 | 107.28 | 0.2815 | 876.0 | 663.9 | |
| 0.00 | 1.07 | 0.00 | 0.56 | -8.85 | 137.31 | -20.07 | 102.09 | 0.3484 | 644.0 | 506.3 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -6.81 | 136.90 | -20.49 | 96.14 | 0.3511 | 925.0 | 768.9 | |
| 0.00 | 1.60 | 0.00 | 0.85 | -9.21 | 136.34 | -21.04 | 102.64 | 0.3648 | 761.0 | 695.4 | |
| 0.00 | 1.42 | 0.00 | 0.75 | -8.91 | 136.36 | -21.02 | 101.83 | 0.3637 | 836.0 | 628.8 | |
| 0.00 | 1.69 | 0.00 | 0.92 | -2.61 | 132.98 | -24.40 | 85.34 | 0.4158 | 825.0 | 668.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
