SDO HMI 2014-04-22 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.59 | 204.86 | 29.46 | 139.22 | -23.58 | 116.99 | -40.39 | 119.65 | 0.6855 | 561.1 | 218.0 | |
|
previous
or next observation for the same group /

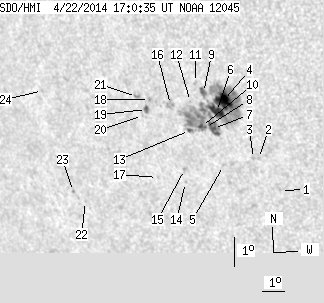

back to the solar disc SDO HMI 2014-04-22 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.42 | -26.20 | 119.08 | -38.30 | 124.26 | 0.6752 | 474.0 | 405.6 | |
| 0.00 | 1.42 | 0.00 | 0.95 | -25.13 | 118.55 | -38.83 | 122.52 | 0.6755 | 611.0 | 423.5 | |
| 0.00 | 1.33 | 0.00 | 0.89 | -25.12 | 118.34 | -39.04 | 122.40 | 0.6778 | 603.0 | 447.4 | |
| 17.31 | 176.63 | 11.60 | 119.40 | -23.22 | 117.76 | -39.62 | 119.48 | 0.6756 | 1137.3 | 297.7 | |
| 0.00 | 0.89 | 0.00 | 0.61 | -25.28 | 116.98 | -40.41 | 121.95 | 0.6931 | 756.0 | 672.6 | |
| 11.36 | -4.00 | 7.67 | -4.00 | -23.55 | 117.34 | -40.04 | 119.75 | 0.6816 | 830.7 | 999999 | |
| 7.54 | -4.00 | 5.13 | -4.00 | -24.08 | 117.01 | -40.37 | 120.34 | 0.6875 | 715.8 | 999999 | |
| 0.27 | -4.00 | 0.18 | -4.00 | -24.03 | 116.68 | -40.70 | 120.12 | 0.6909 | 600.0 | 999999 | |
| 2.57 | -4.00 | 1.74 | -4.00 | -22.92 | 117.01 | -40.37 | 118.74 | 0.6827 | 647.8 | 999999 | |
| 1.69 | -4.00 | 1.15 | -4.00 | -23.99 | 116.52 | -40.86 | 120.00 | 0.6925 | 518.8 | 999999 | |
| 0.00 | 1.51 | 0.00 | 1.02 | -22.59 | 116.78 | -40.60 | 118.18 | 0.6839 | 515.0 | 366.9 | |
| 0.00 | 0.80 | 0.00 | 0.55 | -23.18 | 116.35 | -41.03 | 118.81 | 0.6910 | 139.0 | 102.3 | |
| 1.07 | -4.00 | 0.74 | -4.00 | -24.09 | 115.96 | -41.43 | 119.89 | 0.6990 | 437.8 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.63 | -25.72 | 115.09 | -42.29 | 121.71 | 0.7149 | 469.0 | 378.8 | |
| 0.00 | 2.31 | 0.00 | 1.62 | -25.31 | 115.23 | -42.16 | 121.22 | 0.7118 | 817.0 | 505.3 | |
| 0.00 | 6.48 | 0.00 | 4.49 | -23.22 | 115.46 | -41.93 | 118.50 | 0.7010 | -677.0 | -596.0 | |
| 0.00 | 0.71 | 0.00 | 0.51 | -25.49 | 113.91 | -43.47 | 120.92 | 0.7262 | 449.0 | 387.2 | |
| 0.00 | 1.15 | 0.00 | 0.81 | -23.01 | 114.61 | -42.78 | 117.89 | 0.7096 | -783.0 | -747.2 | |
| 1.78 | 3.73 | 1.25 | 2.63 | -23.32 | 114.35 | -43.04 | 118.20 | 0.7134 | -810.5 | -653.3 | |
| 0.00 | 1.15 | 0.00 | 0.82 | -23.50 | 114.09 | -43.29 | 118.35 | 0.7168 | -420.0 | -374.9 | |
| 0.00 | 2.22 | 0.00 | 1.57 | -22.89 | 114.07 | -43.31 | 117.52 | 0.7149 | -752.0 | -623.0 | |
| 0.00 | 0.98 | 0.00 | 0.75 | -26.06 | 110.19 | -47.19 | 120.26 | 0.7653 | -539.0 | -443.5 | |
| 0.00 | 0.89 | 0.00 | 0.68 | -25.70 | 109.79 | -47.60 | 119.69 | 0.7682 | -389.0 | -412.1 | |
| 0.00 | 1.15 | 0.00 | 0.87 | -22.44 | 109.87 | -47.51 | 115.57 | 0.7579 | -182.0 | -248.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
