SDO HMI 2014-04-22 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 98.35 | 421.07 | 135.28 | 581.34 | -12.51 | 226.22 | 69.39 | 258.46 | 0.9331 | 340.6 | 187.7 | |
|
previous
or next observation for the same group /

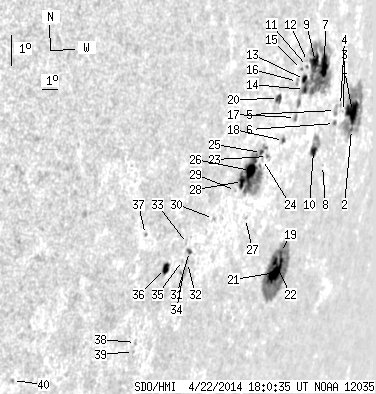

back to the solar disc SDO HMI 2014-04-22 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.55 | 77.57 | 30.89 | 129.77 | -10.91 | 230.14 | 73.31 | 260.10 | 0.9561 | 506.7 | 72.1 | |
| 0.98 | -1.00 | 1.65 | -1.00 | -11.44 | 230.39 | 73.56 | 259.54 | 0.9572 | 357.2 | 999999 | |
| 0.00 | 1.33 | 0.00 | 2.11 | -10.98 | 229.24 | 72.40 | 260.06 | 0.9514 | 457.0 | 405.1 | |
| 0.00 | 1.24 | 0.00 | 1.93 | -10.83 | 228.84 | 72.01 | 260.23 | 0.9493 | 523.0 | 517.1 | |
| 0.00 | 4.88 | 0.00 | 7.45 | -11.02 | 228.45 | 71.62 | 260.04 | 0.9471 | 556.0 | 473.8 | |
| 0.98 | 2.40 | 1.50 | 3.68 | -11.41 | 228.58 | 71.75 | 259.63 | 0.9478 | 521.2 | 452.1 | |
| 12.34 | 109.53 | 17.36 | 150.71 | -9.78 | 226.75 | 69.92 | 261.41 | 0.9376 | 474.8 | 423.6 | |
| 0.00 | 0.27 | 0.00 | 0.40 | -12.73 | 228.25 | 71.42 | 258.24 | 0.9458 | 293.0 | 323.0 | |
| 6.75 | -7.00 | 9.15 | -7.00 | -9.72 | 225.93 | 69.10 | 261.50 | 0.9326 | 692.6 | 999999 | |
| 4.70 | 15.00 | 6.73 | 21.51 | -12.35 | 227.15 | 70.32 | 258.65 | 0.9396 | -264.8 | 146.0 | |
| 0.44 | 1.24 | 0.59 | 1.64 | -9.92 | 225.33 | 68.50 | 261.30 | 0.9288 | 535.4 | 545.6 | |
| 0.00 | 1.33 | 0.00 | 1.75 | -9.77 | 225.27 | 68.44 | 261.46 | 0.9284 | 532.0 | 477.8 | |
| 3.02 | -7.00 | 3.98 | -7.00 | -10.32 | 225.26 | 68.43 | 260.87 | 0.9283 | 440.2 | 999999 | |
| 2.40 | -7.00 | 3.18 | -7.00 | -10.62 | 225.40 | 68.57 | 260.54 | 0.9291 | 338.0 | 999999 | |
| 0.00 | 1.15 | 0.00 | 1.50 | -10.05 | 224.89 | 68.06 | 261.17 | 0.9259 | 343.0 | 395.2 | |
| 0.00 | 2.93 | 0.00 | 3.77 | -10.43 | 224.73 | 67.90 | 260.76 | 0.9248 | 409.0 | 429.3 | |
| 0.89 | 2.49 | 1.16 | 3.25 | -11.50 | 225.08 | 68.25 | 259.59 | 0.9270 | 6.9 | -17.6 | |
| 1.24 | 2.66 | 1.58 | 3.39 | -12.26 | 224.48 | 67.65 | 258.78 | 0.9230 | -167.9 | -27.8 | |
| 0.27 | 91.69 | 0.37 | 126.92 | -15.58 | 226.33 | 69.50 | 255.20 | 0.9347 | 472.3 | 67.7 | |
| 3.28 | 5.06 | 4.03 | 6.21 | -11.05 | 223.48 | 66.65 | 260.11 | 0.9164 | 453.8 | 326.4 | |
| 16.78 | -19.00 | 23.13 | -19.00 | -16.21 | 226.35 | 69.52 | 254.54 | 0.9349 | 608.7 | 999999 | |
| 3.37 | -19.00 | 4.60 | -19.00 | -15.91 | 226.13 | 69.30 | 254.85 | 0.9335 | 852.7 | 999999 | |
| 0.53 | 1.95 | 0.65 | 2.40 | -12.83 | 223.49 | 66.66 | 258.16 | 0.9164 | -204.3 | -164.2 | |
| 0.00 | 1.69 | 0.00 | 2.04 | -12.95 | 223.16 | 66.33 | 258.03 | 0.9142 | -354.0 | -330.9 | |
| 1.24 | 69.32 | 1.49 | 82.25 | -12.75 | 222.98 | 66.15 | 258.25 | 0.9129 | -228.1 | 161.9 | |
| 9.05 | -25.00 | 10.68 | -25.00 | -13.34 | 222.45 | 65.62 | 257.59 | 0.9092 | -186.6 | 999999 | |
| 0.00 | 1.07 | 0.00 | 1.28 | -14.80 | 222.88 | 66.05 | 256.00 | 0.9124 | 193.0 | 234.5 | |
| 4.79 | -25.00 | 5.56 | -25.00 | -13.71 | 222.04 | 65.21 | 257.17 | 0.9063 | 654.6 | 999999 | |
| 0.00 | 0.89 | 0.00 | 1.02 | -14.02 | 221.68 | 64.85 | 256.83 | 0.9038 | 182.0 | 225.2 | |
| 0.00 | 1.69 | 0.00 | 1.87 | -14.97 | 220.60 | 63.77 | 255.74 | 0.8960 | -213.0 | -236.9 | |
| 1.51 | 2.93 | 1.61 | 3.13 | -16.08 | 219.53 | 62.70 | 254.45 | 0.8882 | -435.4 | -258.9 | |
| 0.00 | 1.51 | 0.00 | 1.62 | -16.42 | 219.58 | 62.75 | 254.07 | 0.8888 | 278.0 | 200.6 | |
| 0.00 | 0.62 | 0.00 | 0.66 | -15.85 | 219.27 | 62.44 | 254.69 | 0.8861 | -498.0 | -356.4 | |
| 0.00 | 5.06 | 0.00 | 5.42 | -16.74 | 219.49 | 62.66 | 253.70 | 0.8882 | 223.0 | 143.5 | |
| 0.00 | 1.15 | 0.00 | 1.22 | -16.38 | 219.22 | 62.39 | 254.09 | 0.8859 | -251.0 | -238.0 | |
| 5.24 | 7.72 | 5.39 | 7.95 | -16.70 | 218.25 | 61.42 | 253.66 | 0.8785 | -429.2 | -243.4 | |
| 0.00 | 1.24 | 0.00 | 1.21 | -15.77 | 216.49 | 59.66 | 254.61 | 0.8634 | -115.0 | -247.8 | |
| 0.00 | 1.24 | 0.00 | 1.26 | -19.07 | 217.66 | 60.83 | 250.92 | 0.8752 | -262.0 | -343.9 | |
| 0.00 | 0.71 | 0.00 | 0.72 | -19.35 | 217.70 | 60.87 | 250.60 | 0.8758 | -198.0 | -266.8 | |
| 0.00 | 1.51 | 0.00 | 1.30 | -20.73 | 211.20 | 54.36 | 248.12 | 0.8213 | -553.0 | -493.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
