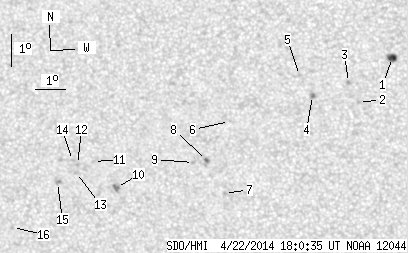

SDO HMI 2014-04-22 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.70 | 33.73 | 2.43 | 18.02 | -19.90 | 140.78 | -16.05 | 136.10 | 0.3701 | 299.5 | 94.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-22 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.08 | 6.30 | 2.10 | 3.25 | -17.59 | 146.84 | -9.99 | 143.01 | 0.2761 | 1154.1 | 821.8 | |
| 0.00 | 1.60 | 0.00 | 0.83 | -18.96 | 145.66 | -11.17 | 143.00 | 0.3058 | 821.0 | 644.3 | |
| 0.00 | 1.69 | 0.00 | 0.88 | -18.34 | 145.38 | -11.45 | 140.99 | 0.3007 | 1038.0 | 841.3 | |
| 0.00 | 2.84 | 0.00 | 1.48 | -18.72 | 144.18 | -12.65 | 139.10 | 0.3182 | 1041.0 | 823.3 | |
| 0.00 | 1.42 | 0.00 | 0.74 | -18.09 | 143.80 | -13.03 | 136.90 | 0.3149 | 692.0 | 403.1 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -19.47 | 141.38 | -15.45 | 135.23 | 0.3581 | 824.0 | 678.8 | |
| 0.00 | 1.42 | 0.00 | 0.76 | -21.71 | 140.98 | -15.85 | 138.90 | 0.3878 | 836.0 | 609.4 | |
| 0.62 | 3.46 | 0.33 | 1.85 | -20.66 | 140.49 | -16.34 | 136.11 | 0.3813 | 1004.4 | 733.5 | |
| 0.00 | 1.51 | 0.00 | 0.81 | -20.72 | 140.05 | -16.78 | 135.48 | 0.3868 | 682.0 | 550.1 | |
| 0.00 | 3.64 | 0.00 | 1.99 | -21.43 | 137.34 | -19.49 | 132.81 | 0.4252 | -1091.0 | -913.0 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -20.59 | 136.67 | -20.16 | 130.34 | 0.4251 | -825.0 | -693.5 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -20.67 | 136.11 | -20.72 | 129.78 | 0.4326 | -911.0 | -776.3 | |
| 0.00 | 1.95 | 0.00 | 1.07 | -20.92 | 136.04 | -20.80 | 130.16 | 0.4357 | -639.0 | -490.3 | |
| 0.00 | 1.51 | 0.00 | 0.83 | -20.54 | 135.95 | -20.88 | 129.34 | 0.4333 | -764.0 | -559.9 | |
| 0.00 | 2.66 | 0.00 | 1.47 | -21.21 | 135.33 | -21.50 | 129.85 | 0.4468 | -909.0 | -738.3 | |
| 0.00 | 1.24 | 0.00 | 0.70 | -22.57 | 133.52 | -23.31 | 130.20 | 0.4803 | 665.0 | 504.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
