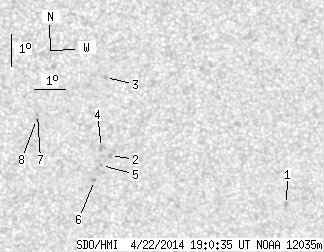

SDO HMI 2014-04-22 19:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.88 | 0.00 | 6.61 | -18.66 | 162.46 | 6.18 | 202.74 | 0.2606 | -865.5 | -700.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-22 19:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.60 | 0.00 | 0.84 | -20.35 | 168.07 | 11.79 | 215.68 | 0.3299 | -816.0 | -702.2 | |
| 0.00 | 1.60 | 0.00 | 0.82 | -18.89 | 162.29 | 6.01 | 202.35 | 0.2616 | -901.0 | -729.1 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -16.48 | 162.05 | 5.77 | 205.77 | 0.2229 | -928.0 | -695.9 | |
| 0.00 | 4.08 | 0.00 | 2.09 | -18.65 | 161.99 | 5.71 | 201.73 | 0.2559 | -875.0 | -674.3 | |
| 0.00 | 1.07 | 0.00 | 0.55 | -19.20 | 162.01 | 5.73 | 200.97 | 0.2648 | -790.0 | -709.8 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -19.67 | 161.80 | 5.52 | 199.64 | 0.2709 | -855.0 | -671.2 | |
| 0.00 | 0.98 | 0.00 | 0.50 | -17.64 | 159.93 | 3.65 | 195.47 | 0.2285 | -854.0 | -681.3 | |
| 0.00 | 1.07 | 0.00 | 0.54 | -17.79 | 159.90 | 3.62 | 195.17 | 0.2309 | -905.0 | -800.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
