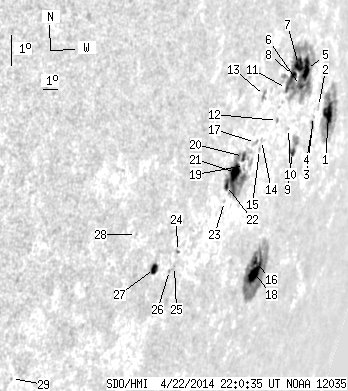

SDO HMI 2014-04-22 22:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.80 | 375.29 | 134.41 | 582.94 | -12.35 | 226.50 | 71.88 | 258.59 | 0.9476 | 255.8 | 161.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-22 22:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.89 | 67.48 | 30.31 | 129.46 | -10.97 | 230.21 | 75.60 | 259.96 | 0.9668 | 318.2 | 32.5 | |
| 0.00 | 1.24 | 0.00 | 2.19 | -10.83 | 228.91 | 74.29 | 260.15 | 0.9609 | 413.0 | 380.8 | |
| 0.00 | 0.80 | 0.00 | 1.38 | -11.17 | 228.57 | 73.95 | 259.81 | 0.9592 | 421.0 | 417.8 | |
| 0.00 | 3.55 | 0.00 | 6.15 | -11.44 | 228.65 | 74.03 | 259.53 | 0.9595 | 516.0 | 450.5 | |
| 11.72 | 118.61 | 18.57 | 183.73 | -9.85 | 227.00 | 72.39 | 261.25 | 0.9515 | 330.8 | 317.1 | |
| 3.64 | -5.00 | 5.68 | -5.00 | -10.37 | 226.68 | 72.06 | 260.71 | 0.9497 | 794.2 | 999999 | |
| 9.50 | -5.00 | 14.49 | -5.00 | -9.77 | 226.16 | 71.54 | 261.37 | 0.9469 | 597.4 | 999999 | |
| 3.37 | -5.00 | 5.06 | -5.00 | -10.13 | 225.86 | 71.24 | 260.99 | 0.9452 | 458.8 | 999999 | |
| 3.28 | 11.01 | 5.23 | 17.58 | -12.39 | 227.14 | 72.53 | 258.57 | 0.9518 | -189.1 | 171.2 | |
| 0.00 | 0.71 | 0.00 | 1.09 | -11.72 | 226.29 | 71.67 | 259.30 | 0.9474 | -233.0 | -244.9 | |
| 1.69 | -5.00 | 2.48 | -5.00 | -10.56 | 225.42 | 70.80 | 260.55 | 0.9426 | 225.2 | 999999 | |
| 0.00 | 1.51 | 0.00 | 2.18 | -11.57 | 225.14 | 70.52 | 259.48 | 0.9409 | 54.0 | 58.1 | |
| 0.00 | 4.44 | 0.00 | 5.99 | -10.92 | 223.62 | 69.00 | 260.21 | 0.9318 | 549.0 | 418.4 | |
| 0.00 | 1.33 | 0.00 | 1.83 | -12.27 | 224.08 | 69.47 | 258.75 | 0.9346 | 66.0 | 66.7 | |
| 0.00 | 0.98 | 0.00 | 1.34 | -12.55 | 224.07 | 69.45 | 258.46 | 0.9345 | -129.0 | -110.5 | |
| 2.40 | 85.94 | 3.62 | 131.49 | -15.86 | 226.07 | 71.46 | 254.92 | 0.9460 | 648.4 | 79.8 | |
| 0.00 | 2.75 | 0.00 | 3.71 | -12.37 | 223.61 | 69.00 | 258.65 | 0.9317 | 39.0 | -8.4 | |
| 13.67 | -16.00 | 20.83 | -16.00 | -16.19 | 226.26 | 71.64 | 254.57 | 0.9470 | 398.4 | 999999 | |
| 0.00 | 1.07 | 0.00 | 1.41 | -13.12 | 223.10 | 68.48 | 257.85 | 0.9284 | -517.0 | -427.0 | |
| 2.66 | 61.44 | 3.48 | 79.61 | -12.86 | 222.86 | 68.25 | 258.13 | 0.9269 | -526.8 | 172.1 | |
| 11.72 | -20.00 | 15.08 | -20.00 | -13.38 | 222.50 | 67.88 | 257.56 | 0.9246 | -122.8 | 999999 | |
| 2.75 | -20.00 | 3.48 | -20.00 | -13.82 | 222.02 | 67.40 | 257.08 | 0.9214 | 586.5 | 999999 | |
| 0.00 | 0.89 | 0.00 | 1.13 | -14.31 | 222.15 | 67.53 | 256.55 | 0.9223 | 397.0 | 382.2 | |
| 0.36 | 1.42 | 0.41 | 1.64 | -16.06 | 219.55 | 64.93 | 254.56 | 0.9048 | -346.2 | -263.1 | |
| 0.00 | 0.53 | 0.00 | 0.62 | -16.53 | 219.62 | 65.00 | 254.05 | 0.9054 | 258.0 | 236.5 | |
| 0.00 | 0.62 | 0.00 | 0.71 | -16.67 | 219.34 | 64.72 | 253.88 | 0.9035 | -72.0 | -37.3 | |
| 5.15 | 7.72 | 5.69 | 8.53 | -16.69 | 218.25 | 63.64 | 253.80 | 0.8956 | -337.1 | -246.9 | |
| 0.00 | 0.27 | 0.00 | 0.28 | -15.76 | 216.48 | 61.86 | 254.75 | 0.8816 | -222.0 | -257.0 | |
| 0.00 | 0.98 | 0.00 | 0.89 | -20.66 | 211.36 | 56.75 | 248.58 | 0.8426 | -507.0 | -446.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
