SDO HMI 2014-04-22 22:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.73 | 0.00 | 4.04 | -9.35 | 138.90 | -15.72 | 110.44 | 0.2928 | 746.8 | 612.7 | |
|
previous
or next observation for the same group /

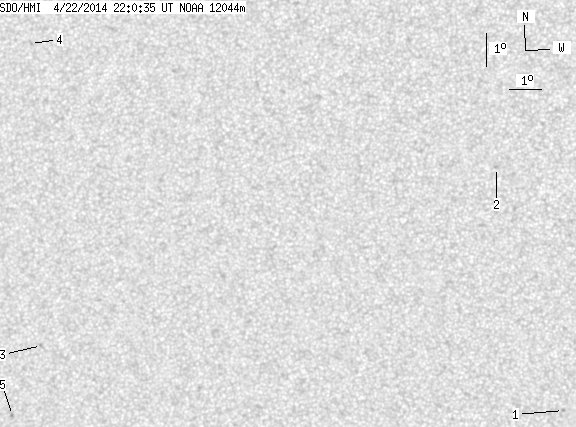

back to the solar disc SDO HMI 2014-04-22 22:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 0.72 | -13.96 | 149.41 | -5.20 | 150.66 | 0.1804 | 950.0 | 751.5 | |
| 0.00 | 1.78 | 0.00 | 0.89 | -6.58 | 147.50 | -7.12 | 103.15 | 0.1269 | 674.0 | 589.2 | |
| 0.00 | 1.78 | 0.00 | 0.95 | -11.64 | 132.90 | -21.72 | 108.61 | 0.3841 | 619.0 | 523.0 | |
| 0.00 | 1.60 | 0.00 | 0.85 | -2.52 | 133.00 | -21.62 | 84.30 | 0.3715 | 767.0 | 653.2 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -13.73 | 131.73 | -22.89 | 112.81 | 0.4116 | 724.0 | 568.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
