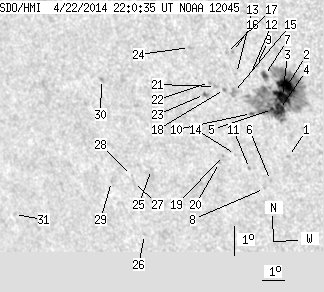

SDO HMI 2014-04-22 22:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.41 | 227.30 | 28.25 | 149.35 | -23.62 | 116.73 | -37.89 | 120.90 | 0.6575 | 405.7 | 216.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-22 22:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 0.94 | -25.48 | 116.96 | -37.66 | 123.62 | 0.6646 | 365.0 | 345.7 | |
| 16.42 | 192.93 | 10.63 | 125.66 | -23.26 | 117.65 | -36.97 | 120.84 | 0.6457 | 1198.9 | 332.7 | |
| 12.87 | -2.00 | 8.37 | -2.00 | -23.57 | 117.38 | -37.23 | 121.14 | 0.6502 | 917.6 | 999999 | |
| 9.06 | -2.00 | 5.92 | -2.00 | -23.97 | 117.12 | -37.49 | 121.58 | 0.6552 | 785.2 | 999999 | |
| 1.07 | -2.00 | 0.70 | -2.00 | -23.96 | 116.83 | -37.78 | 121.41 | 0.6583 | 553.2 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.66 | -26.21 | 115.91 | -38.71 | 124.06 | 0.6795 | 590.0 | 466.0 | |
| 2.57 | -2.00 | 1.68 | -2.00 | -22.87 | 116.87 | -37.75 | 119.87 | 0.6528 | 603.0 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.54 | -26.45 | 115.55 | -39.06 | 124.21 | 0.6845 | 539.0 | 376.7 | |
| 0.00 | 1.15 | 0.00 | 0.75 | -22.54 | 116.65 | -37.97 | 119.29 | 0.6538 | 600.0 | 463.5 | |
| 0.80 | -2.00 | 0.53 | -2.00 | -24.04 | 115.92 | -38.69 | 121.07 | 0.6689 | 463.2 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.78 | -25.78 | 115.17 | -39.44 | 123.10 | 0.6852 | 457.0 | 453.1 | |
| 0.00 | 0.89 | 0.00 | 0.58 | -22.87 | 116.25 | -38.37 | 119.57 | 0.6599 | 369.0 | 331.7 | |
| 0.00 | 0.62 | 0.00 | 0.41 | -22.75 | 115.74 | -38.87 | 119.16 | 0.6651 | 132.0 | 210.9 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -25.30 | 114.76 | -39.86 | 122.25 | 0.6875 | 390.0 | 461.7 | |
| 0.00 | 5.33 | 0.00 | 3.55 | -23.34 | 115.41 | -39.21 | 119.84 | 0.6714 | -644.0 | -517.8 | |
| 0.00 | 1.15 | 0.00 | 0.76 | -22.05 | 115.81 | -38.81 | 118.19 | 0.6614 | -806.0 | -687.6 | |
| 0.00 | 1.15 | 0.00 | 0.76 | -22.07 | 115.55 | -39.07 | 118.10 | 0.6644 | -690.0 | -559.2 | |
| 0.00 | 1.60 | 0.00 | 1.07 | -23.22 | 115.07 | -39.55 | 119.52 | 0.6748 | -867.0 | -726.8 | |
| 0.00 | 0.98 | 0.00 | 0.67 | -25.31 | 114.23 | -40.39 | 122.01 | 0.6931 | 595.0 | 551.6 | |
| 0.00 | 0.98 | 0.00 | 0.67 | -25.52 | 113.97 | -40.65 | 122.17 | 0.6969 | 575.0 | 510.4 | |
| 0.00 | 1.69 | 0.00 | 1.13 | -23.11 | 114.72 | -39.89 | 119.21 | 0.6781 | -752.0 | -575.8 | |
| 0.00 | 1.07 | 0.00 | 0.72 | -22.97 | 114.52 | -40.10 | 118.92 | 0.6799 | -762.0 | -733.8 | |
| 0.62 | 2.93 | 0.42 | 1.99 | -23.33 | 114.17 | -40.45 | 119.28 | 0.6853 | -771.1 | -653.1 | |
| 0.00 | 1.15 | 0.00 | 0.78 | -21.83 | 114.06 | -40.55 | 117.13 | 0.6805 | -595.0 | -512.0 | |
| 0.00 | 1.51 | 0.00 | 1.09 | -25.57 | 110.87 | -43.75 | 120.91 | 0.7294 | -343.0 | -250.2 | |
| 0.00 | 0.89 | 0.00 | 0.66 | -27.63 | 109.51 | -45.10 | 123.02 | 0.7507 | -605.0 | -496.0 | |
| 0.00 | 2.04 | 0.00 | 1.50 | -25.94 | 109.85 | -44.77 | 120.99 | 0.7411 | -592.0 | -517.0 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -25.71 | 109.86 | -44.75 | 120.70 | 0.7401 | -598.0 | -509.0 | |
| 0.00 | 0.98 | 0.00 | 0.73 | -25.84 | 108.84 | -45.77 | 120.50 | 0.7508 | -474.0 | -428.3 | |
| 0.00 | 2.13 | 0.00 | 1.54 | -22.61 | 109.86 | -44.76 | 116.64 | 0.7296 | -730.0 | -551.2 | |
| 0.00 | 1.24 | 0.00 | 1.03 | -26.59 | 103.48 | -51.13 | 119.71 | 0.8038 | -172.0 | -158.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
