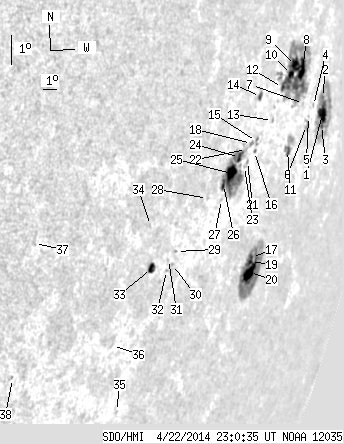

SDO HMI 2014-04-22 23:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.18 | 390.17 | 118.64 | 620.66 | -12.28 | 226.38 | 72.32 | 258.65 | 0.9498 | 200.8 | 159.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-22 23:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.74 | 67.57 | 21.23 | 134.56 | -10.96 | 230.17 | 76.11 | 259.95 | 0.9690 | 323.9 | 32.8 | |
| 1.78 | -1.00 | 3.43 | -1.00 | -10.49 | 229.82 | 75.76 | 260.44 | 0.9676 | 385.5 | 999999 | |
| 0.80 | -1.00 | 1.60 | -1.00 | -11.31 | 230.33 | 76.27 | 259.57 | 0.9696 | 269.2 | 999999 | |
| 0.00 | 1.07 | 0.00 | 1.94 | -10.81 | 228.94 | 74.88 | 260.15 | 0.9636 | 388.0 | 348.7 | |
| 0.00 | 0.27 | 0.00 | 0.48 | -11.18 | 228.61 | 74.55 | 259.78 | 0.9620 | 398.0 | 399.7 | |
| 0.00 | 4.79 | 0.00 | 8.58 | -11.46 | 228.58 | 74.52 | 259.49 | 0.9618 | 202.0 | 330.1 | |
| 0.00 | 0.89 | 0.00 | 1.51 | -10.84 | 227.81 | 73.74 | 260.16 | 0.9582 | 303.0 | 284.2 | |
| 8.52 | 125.02 | 13.98 | 199.75 | -9.86 | 227.09 | 73.03 | 261.21 | 0.9548 | 236.1 | 326.5 | |
| 7.73 | -8.00 | 12.20 | -8.00 | -9.80 | 226.33 | 72.27 | 261.30 | 0.9509 | 550.5 | 999999 | |
| 3.37 | -8.00 | 5.25 | -8.00 | -10.10 | 226.08 | 72.02 | 261.00 | 0.9495 | 476.1 | 999999 | |
| 3.29 | 12.79 | 5.39 | 21.01 | -12.35 | 227.10 | 73.04 | 258.60 | 0.9545 | -158.8 | 143.4 | |
| 1.78 | -8.00 | 2.68 | -8.00 | -10.55 | 225.44 | 71.38 | 260.55 | 0.9459 | 250.0 | 999999 | |
| 0.00 | 1.33 | 0.00 | 1.97 | -11.59 | 225.08 | 71.01 | 259.45 | 0.9437 | 19.0 | 50.7 | |
| 1.95 | 3.29 | 2.70 | 4.54 | -10.97 | 223.62 | 69.56 | 260.14 | 0.9352 | 468.5 | 343.0 | |
| 0.00 | 2.84 | 0.00 | 4.00 | -12.32 | 224.02 | 69.96 | 258.69 | 0.9375 | -38.0 | 78.9 | |
| 0.44 | 1.42 | 0.63 | 2.00 | -12.63 | 224.03 | 69.96 | 258.36 | 0.9375 | -131.6 | -48.7 | |
| 0.27 | 79.65 | 0.41 | 125.25 | -15.76 | 226.05 | 71.98 | 255.03 | 0.9488 | 679.3 | 74.2 | |
| 0.00 | 2.58 | 0.00 | 3.56 | -12.41 | 223.62 | 69.56 | 258.59 | 0.9351 | -226.0 | -112.4 | |
| 2.04 | -17.00 | 3.15 | -17.00 | -15.88 | 226.05 | 71.99 | 254.89 | 0.9488 | 632.5 | 999999 | |
| 11.63 | -17.00 | 18.18 | -17.00 | -16.21 | 226.24 | 72.18 | 254.55 | 0.9498 | 421.4 | 999999 | |
| 0.00 | 1.33 | 0.00 | 1.84 | -12.97 | 223.60 | 69.54 | 258.00 | 0.9350 | -117.0 | -88.4 | |
| 0.00 | 1.07 | 0.00 | 1.46 | -12.63 | 223.30 | 69.24 | 258.37 | 0.9332 | -13.0 | -38.8 | |
| 0.00 | 0.62 | 0.00 | 0.85 | -13.14 | 223.44 | 69.38 | 257.82 | 0.9340 | -280.0 | -230.3 | |
| 4.35 | 66.33 | 5.82 | 87.97 | -12.91 | 222.86 | 68.80 | 258.07 | 0.9304 | -513.4 | 139.9 | |
| 9.50 | -24.00 | 12.49 | -24.00 | -13.43 | 222.49 | 68.42 | 257.51 | 0.9280 | -117.2 | 999999 | |
| 3.11 | -24.00 | 4.01 | -24.00 | -13.81 | 222.04 | 67.98 | 257.10 | 0.9252 | 577.2 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.92 | -14.26 | 222.15 | 68.09 | 256.61 | 0.9259 | 432.0 | 398.8 | |
| 0.00 | 1.33 | 0.00 | 1.66 | -14.32 | 221.04 | 66.97 | 256.53 | 0.9186 | 198.0 | 225.1 | |
| 0.00 | 0.53 | 0.00 | 0.63 | -16.07 | 219.69 | 65.63 | 254.58 | 0.9097 | -252.0 | -215.5 | |
| 0.00 | 0.98 | 0.00 | 1.15 | -16.48 | 219.65 | 65.58 | 254.13 | 0.9095 | 233.0 | 224.5 | |
| 0.00 | 0.53 | 0.00 | 0.62 | -16.36 | 219.26 | 65.20 | 254.25 | 0.9068 | -285.0 | -181.5 | |
| 0.00 | 0.89 | 0.00 | 1.04 | -16.69 | 219.33 | 65.26 | 253.88 | 0.9074 | -73.0 | -77.4 | |
| 4.88 | 6.84 | 5.49 | 7.68 | -16.72 | 218.22 | 64.16 | 253.80 | 0.8994 | -352.3 | -209.0 | |
| 0.00 | 1.15 | 0.00 | 1.26 | -15.44 | 217.40 | 63.34 | 255.19 | 0.8929 | -125.0 | -105.9 | |
| 0.00 | 1.07 | 0.00 | 1.24 | -21.19 | 218.85 | 64.78 | 248.88 | 0.9060 | -269.0 | -156.6 | |
| 0.00 | 1.15 | 0.00 | 1.25 | -19.23 | 217.07 | 63.00 | 250.93 | 0.8921 | -252.0 | -228.0 | |
| 0.00 | 1.42 | 0.00 | 1.28 | -16.49 | 210.60 | 56.54 | 253.50 | 0.8364 | -263.0 | -261.8 | |
| 0.00 | 0.71 | 0.00 | 0.66 | -20.68 | 211.48 | 57.42 | 248.65 | 0.8485 | -414.0 | -424.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
