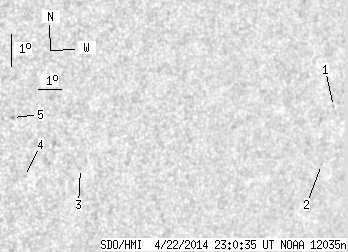

SDO HMI 2014-04-22 23:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.88 | 0.00 | 3.32 | -16.79 | 195.86 | 41.79 | 250.12 | 0.6766 | -591.2 | -504.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-22 23:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.75 | -15.23 | 203.43 | 49.36 | 254.19 | 0.7633 | -492.0 | -424.3 | |
| 0.00 | 0.71 | 0.00 | 0.55 | -17.03 | 203.45 | 49.39 | 251.86 | 0.7661 | -472.0 | -437.9 | |
| 0.00 | 0.71 | 0.00 | 0.46 | -17.76 | 193.01 | 38.94 | 248.18 | 0.6471 | -625.0 | -537.5 | |
| 0.00 | 1.15 | 0.00 | 0.73 | -18.12 | 190.84 | 36.78 | 246.81 | 0.6214 | -576.0 | -447.0 | |
| 0.00 | 1.33 | 0.00 | 0.83 | -16.33 | 189.97 | 35.90 | 249.29 | 0.6039 | -791.0 | -654.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
