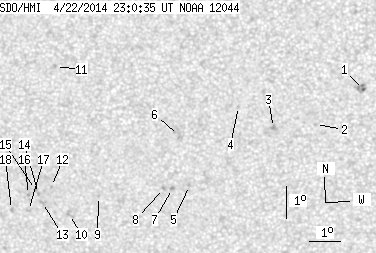

SDO HMI 2014-04-22 23:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.44 | 39.43 | 0.23 | 20.84 | -19.71 | 140.44 | -13.62 | 140.41 | 0.3424 | 60.9 | 140.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-22 23:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.44 | 6.84 | 0.23 | 3.50 | -17.68 | 147.10 | -6.96 | 152.39 | 0.2502 | 1061.6 | 887.2 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -18.75 | 145.52 | -8.55 | 149.52 | 0.2787 | 818.0 | 636.2 | |
| 0.00 | 3.11 | 0.00 | 1.61 | -18.82 | 144.16 | -9.90 | 145.92 | 0.2918 | 1057.0 | 788.1 | |
| 0.00 | 0.89 | 0.00 | 0.46 | -18.15 | 143.07 | -10.99 | 141.72 | 0.2938 | 691.0 | 541.6 | |
| 0.00 | 1.51 | 0.00 | 0.80 | -20.58 | 141.29 | -12.78 | 142.63 | 0.3426 | 831.0 | 624.7 | |
| 0.00 | 5.06 | 0.00 | 2.65 | -19.02 | 141.06 | -13.01 | 139.00 | 0.3258 | 524.0 | 396.1 | |
| 0.00 | 1.86 | 0.00 | 0.99 | -20.66 | 140.72 | -13.35 | 141.62 | 0.3494 | 1003.0 | 808.2 | |
| 0.00 | 1.69 | 0.00 | 0.89 | -20.66 | 140.42 | -13.64 | 141.01 | 0.3523 | 827.0 | 650.3 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -20.86 | 138.23 | -15.83 | 137.36 | 0.3779 | -887.0 | -677.5 | |
| 0.00 | 4.08 | 0.00 | 2.20 | -21.40 | 137.19 | -16.87 | 136.66 | 0.3953 | -685.0 | -664.1 | |
| 0.00 | 1.42 | 0.00 | 0.75 | -16.79 | 137.22 | -16.84 | 126.92 | 0.3485 | 891.0 | 713.2 | |
| 0.00 | 0.80 | 0.00 | 0.43 | -20.51 | 136.69 | -17.37 | 134.16 | 0.3915 | -764.0 | -639.3 | |
| 0.00 | 3.11 | 0.00 | 1.68 | -21.00 | 136.33 | -17.73 | 134.55 | 0.4008 | -616.0 | -556.3 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -20.71 | 136.23 | -17.83 | 133.85 | 0.3990 | -892.0 | -758.9 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -20.59 | 136.14 | -17.92 | 133.48 | 0.3986 | -806.0 | -651.8 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -20.74 | 135.89 | -18.18 | 133.39 | 0.4031 | -757.0 | -646.9 | |
| 0.00 | 1.86 | 0.00 | 1.01 | -21.24 | 135.82 | -18.24 | 134.25 | 0.4090 | -543.0 | -513.5 | |
| 0.00 | 1.78 | 0.00 | 0.97 | -21.19 | 135.25 | -18.81 | 133.33 | 0.4151 | -887.0 | -683.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
