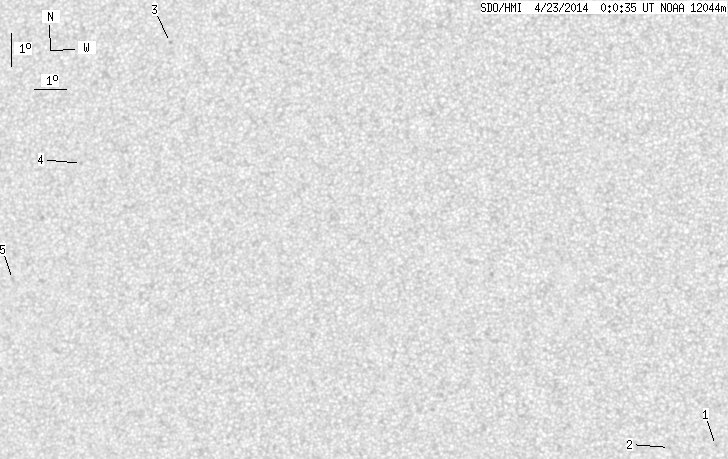

SDO HMI 2014-04-23 00:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.03 | 0.00 | 3.21 | -8.62 | 134.24 | -19.27 | 109.10 | 0.3560 | 734.6 | 575.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-23 00:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.31 | -15.03 | 149.75 | -3.76 | 160.10 | 0.1870 | 657.0 | 521.1 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -15.08 | 148.31 | -5.20 | 153.55 | 0.1975 | 763.0 | 531.7 | |
| 0.00 | 1.33 | 0.00 | 0.70 | -2.52 | 133.02 | -20.49 | 83.92 | 0.3532 | 832.0 | 672.5 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -6.06 | 130.00 | -23.51 | 93.80 | 0.3992 | 753.0 | 602.8 | |
| 0.00 | 2.04 | 0.00 | 1.13 | -9.47 | 127.47 | -26.04 | 101.40 | 0.4436 | 668.0 | 531.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
