SDO HMI 2014-04-23 01:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.87 | 34.02 | 0.95 | 17.83 | -19.67 | 140.95 | -12.01 | 143.77 | 0.3253 | 286.1 | 294.0 | |
|
previous
or next observation for the same group /

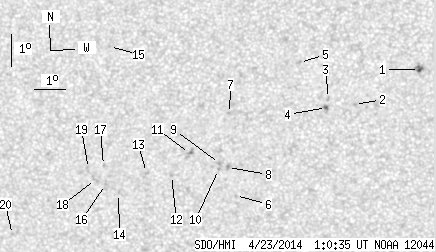

back to the solar disc SDO HMI 2014-04-23 01:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.07 | 5.77 | 0.54 | 2.95 | -17.69 | 147.17 | -5.78 | 156.49 | 0.2418 | 1058.6 | 839.7 | |
| 0.00 | 0.98 | 0.00 | 0.50 | -18.75 | 145.05 | -7.91 | 151.42 | 0.2735 | 757.0 | 612.2 | |
| 0.00 | 1.51 | 0.00 | 0.78 | -18.55 | 144.23 | -8.73 | 148.62 | 0.2776 | 851.0 | 723.2 | |
| 0.80 | 2.22 | 0.41 | 1.15 | -18.83 | 144.15 | -8.81 | 148.94 | 0.2822 | 1028.2 | 818.6 | |
| 0.00 | 1.60 | 0.00 | 0.82 | -17.42 | 143.36 | -9.60 | 143.75 | 0.2703 | 778.0 | 628.4 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -21.53 | 140.99 | -11.97 | 146.09 | 0.3472 | 683.0 | 541.2 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -18.97 | 141.00 | -11.96 | 141.20 | 0.3142 | 852.0 | 660.8 | |
| 0.00 | 1.95 | 0.00 | 1.03 | -20.65 | 140.80 | -12.16 | 144.09 | 0.3375 | 939.0 | 772.0 | |
| 0.00 | 1.51 | 0.00 | 0.79 | -20.52 | 140.55 | -12.41 | 143.30 | 0.3383 | 809.0 | 669.4 | |
| 0.00 | 0.89 | 0.00 | 0.47 | -20.70 | 140.50 | -12.46 | 143.55 | 0.3412 | 701.0 | 531.0 | |
| 0.00 | 4.62 | 0.00 | 2.44 | -20.19 | 139.59 | -13.37 | 140.66 | 0.3439 | 783.0 | 422.1 | |
| 0.00 | 1.42 | 0.00 | 0.75 | -20.86 | 138.93 | -14.03 | 140.66 | 0.3589 | -833.0 | -567.4 | |
| 0.00 | 1.60 | 0.00 | 0.85 | -20.75 | 138.11 | -14.85 | 138.90 | 0.3662 | -780.0 | -728.2 | |
| 0.00 | 0.53 | 0.00 | 0.29 | -21.38 | 137.10 | -15.86 | 138.32 | 0.3843 | -670.0 | -549.5 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -16.81 | 137.26 | -15.70 | 128.82 | 0.3340 | 765.0 | 595.7 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -21.09 | 136.70 | -16.26 | 137.09 | 0.3854 | -777.0 | -639.3 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -20.50 | 136.70 | -16.26 | 135.94 | 0.3788 | -639.0 | -464.0 | |
| 0.00 | 2.93 | 0.00 | 1.57 | -20.93 | 136.38 | -16.58 | 136.25 | 0.3871 | -589.0 | -622.7 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -20.58 | 136.18 | -16.78 | 135.26 | 0.3855 | -602.0 | -601.0 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -22.58 | 133.32 | -19.63 | 134.73 | 0.4386 | 658.0 | 440.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
