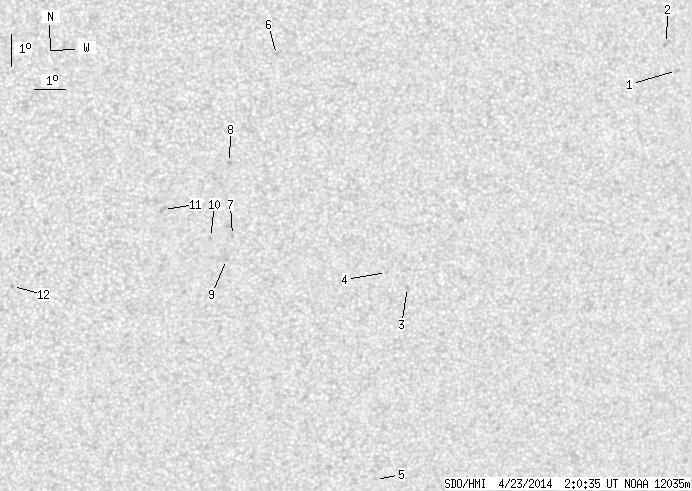

SDO HMI 2014-04-23 02:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.58 | 0.00 | 9.26 | -17.51 | 166.27 | 13.86 | 223.44 | 0.3338 | -729.7 | -620.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-23 02:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.13 | 0.00 | 1.17 | -13.43 | 176.49 | 24.09 | 248.72 | 0.4278 | -675.0 | -518.3 | |
| 0.00 | 2.13 | 0.00 | 1.16 | -12.62 | 176.07 | 23.66 | 250.28 | 0.4179 | -821.0 | -707.8 | |
| 0.00 | 1.69 | 0.00 | 0.90 | -20.35 | 168.21 | 15.80 | 223.54 | 0.3721 | -763.0 | -563.3 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -19.90 | 167.46 | 15.05 | 223.13 | 0.3587 | -701.0 | -502.8 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -26.47 | 167.85 | 15.44 | 212.82 | 0.4416 | -620.0 | -516.5 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -13.25 | 163.45 | 11.04 | 231.96 | 0.2378 | -680.0 | -616.9 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -18.83 | 162.34 | 9.93 | 214.10 | 0.2924 | -728.0 | -614.1 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -16.58 | 162.12 | 9.71 | 218.58 | 0.2604 | -837.0 | -720.8 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -19.58 | 162.19 | 9.78 | 212.25 | 0.3013 | -645.0 | -572.7 | |
| 0.00 | 1.07 | 0.00 | 0.55 | -18.90 | 161.63 | 9.22 | 212.06 | 0.2870 | -837.0 | -706.5 | |
| 0.00 | 2.67 | 0.00 | 1.37 | -18.05 | 160.08 | 7.67 | 209.18 | 0.2616 | -665.0 | -677.3 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -20.48 | 155.31 | 2.91 | 190.06 | 0.2731 | -784.0 | -665.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
