SDO HMI 2014-04-23 03:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.40 | 32.22 | 1.22 | 16.87 | -19.83 | 140.75 | -11.11 | 146.25 | 0.3193 | 314.0 | 160.3 | |
|
previous
or next observation for the same group /

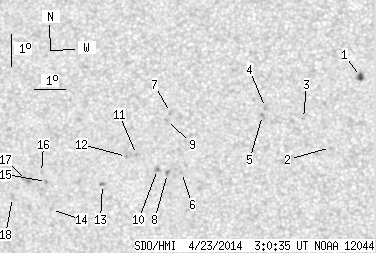

back to the solar disc SDO HMI 2014-04-23 03:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.40 | 4.26 | 1.22 | 2.17 | -17.66 | 147.28 | -4.58 | 160.94 | 0.2341 | 1087.9 | 774.0 | |
| 0.00 | 0.44 | 0.00 | 0.23 | -19.85 | 146.25 | -5.61 | 160.36 | 0.2747 | 616.0 | 435.8 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -18.94 | 145.42 | -6.44 | 156.35 | 0.2657 | 665.0 | 503.8 | |
| 0.00 | 1.87 | 0.00 | 0.96 | -18.59 | 144.21 | -7.64 | 151.94 | 0.2692 | 801.0 | 680.2 | |
| 0.00 | 2.04 | 0.00 | 1.05 | -18.83 | 144.11 | -7.75 | 152.06 | 0.2737 | 1101.0 | 871.8 | |
| 0.00 | 1.07 | 0.00 | 0.56 | -20.57 | 141.38 | -10.48 | 147.82 | 0.3212 | 794.0 | 585.0 | |
| 0.00 | 1.78 | 0.00 | 0.92 | -18.70 | 141.15 | -10.71 | 143.63 | 0.2983 | 819.0 | 681.4 | |
| 0.00 | 2.04 | 0.00 | 1.07 | -20.60 | 140.92 | -10.94 | 146.77 | 0.3257 | 953.0 | 671.3 | |
| 0.00 | 1.42 | 0.00 | 0.74 | -18.94 | 141.00 | -10.86 | 143.79 | 0.3029 | 933.0 | 714.5 | |
| 0.00 | 2.22 | 0.00 | 1.16 | -20.46 | 140.60 | -11.26 | 145.79 | 0.3268 | 929.0 | 719.0 | |
| 0.00 | 0.89 | 0.00 | 0.47 | -19.98 | 139.95 | -11.91 | 143.40 | 0.3268 | 892.0 | 753.2 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -20.04 | 139.61 | -12.24 | 142.77 | 0.3308 | 732.0 | 577.0 | |
| 0.00 | 2.13 | 0.00 | 1.13 | -20.90 | 138.75 | -13.11 | 142.58 | 0.3502 | -990.0 | -775.6 | |
| 0.00 | 1.51 | 0.00 | 0.81 | -21.65 | 136.97 | -14.88 | 140.55 | 0.3773 | -676.0 | -502.9 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -20.77 | 136.90 | -14.96 | 138.76 | 0.3677 | -940.0 | -795.1 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -20.48 | 136.76 | -15.10 | 137.96 | 0.3659 | -828.0 | -636.6 | |
| 0.00 | 3.55 | 0.00 | 1.90 | -20.72 | 136.24 | -15.62 | 137.49 | 0.3744 | -677.0 | -590.0 | |
| 0.00 | 2.22 | 0.00 | 1.19 | -21.24 | 135.71 | -16.15 | 137.58 | 0.3860 | -731.0 | -538.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
