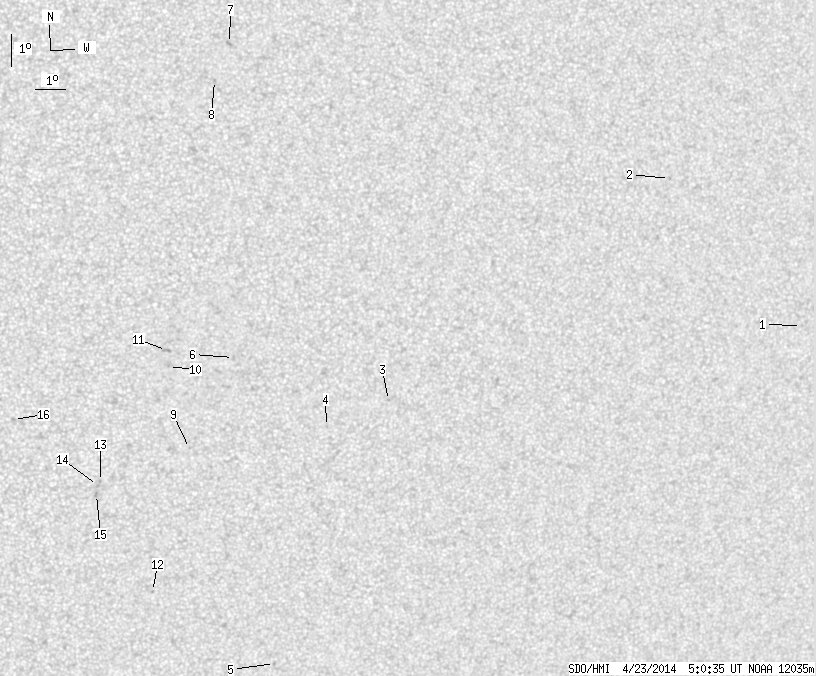

SDO HMI 2014-04-23 05:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.71 | 0.00 | 11.42 | -18.84 | 162.60 | 11.84 | 218.87 | 0.3273 | -687.4 | -575.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-23 05:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.63 | -17.00 | 181.45 | 30.69 | 245.68 | 0.5377 | 534.0 | 430.6 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -12.69 | 176.17 | 25.41 | 251.13 | 0.4442 | -622.0 | -507.8 | |
| 0.00 | 0.89 | 0.00 | 0.47 | -19.78 | 167.47 | 16.71 | 226.17 | 0.3766 | -848.0 | -739.3 | |
| 0.00 | 0.89 | 0.00 | 0.47 | -20.64 | 165.49 | 14.73 | 221.03 | 0.3639 | -723.0 | -605.3 | |
| 0.00 | 1.42 | 0.00 | 0.79 | -28.25 | 164.58 | 13.82 | 207.86 | 0.4521 | -703.0 | -490.0 | |
| 0.00 | 1.78 | 0.00 | 0.92 | -18.54 | 162.26 | 11.50 | 218.58 | 0.3044 | -714.0 | -662.6 | |
| 0.00 | 2.40 | 0.00 | 1.21 | -8.96 | 161.68 | 10.92 | 249.01 | 0.2013 | -827.0 | -693.2 | |
| 0.00 | 1.07 | 0.00 | 0.54 | -10.08 | 161.24 | 10.48 | 243.02 | 0.2019 | -772.0 | -597.8 | |
| 0.00 | 0.44 | 0.00 | 0.23 | -21.40 | 161.02 | 10.26 | 210.20 | 0.3310 | -702.0 | -551.4 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -18.85 | 160.17 | 9.41 | 212.64 | 0.2882 | -749.0 | -637.4 | |
| 0.00 | 3.20 | 0.00 | 1.65 | -18.36 | 160.08 | 9.32 | 213.39 | 0.2806 | -823.0 | -669.1 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -25.97 | 160.12 | 9.36 | 202.11 | 0.3903 | -745.0 | -629.8 | |
| 0.00 | 1.16 | 0.00 | 0.61 | -22.48 | 158.16 | 7.40 | 201.49 | 0.3261 | -795.0 | -600.1 | |
| 0.00 | 1.16 | 0.00 | 0.61 | -22.60 | 158.06 | 7.30 | 201.10 | 0.3275 | -752.0 | -683.6 | |
| 0.00 | 1.60 | 0.00 | 0.84 | -22.89 | 158.05 | 7.29 | 200.72 | 0.3317 | -901.0 | -727.0 | |
| 0.00 | 1.78 | 0.00 | 0.92 | -20.55 | 155.24 | 4.48 | 195.20 | 0.2804 | -856.0 | -572.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
