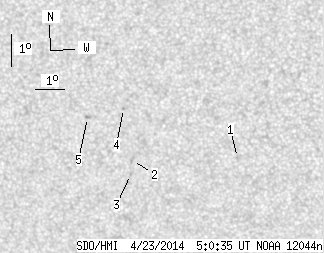

SDO HMI 2014-04-23 05:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.03 | 0.00 | 3.93 | -19.43 | 126.37 | -24.39 | 123.56 | 0.4692 | 409.0 | 286.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-23 05:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.63 | -19.94 | 129.78 | -20.98 | 128.13 | 0.4298 | 836.0 | 690.8 | |
| 0.00 | 2.31 | 0.00 | 1.30 | -19.91 | 126.12 | -24.64 | 124.14 | 0.4755 | 608.0 | 576.6 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -20.34 | 125.98 | -24.78 | 124.80 | 0.4805 | 735.0 | 520.1 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -18.29 | 126.07 | -24.69 | 121.01 | 0.4647 | 757.0 | 612.5 | |
| 0.00 | 1.60 | 0.00 | 0.90 | -18.52 | 124.77 | -25.99 | 120.33 | 0.4834 | -891.0 | -752.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
